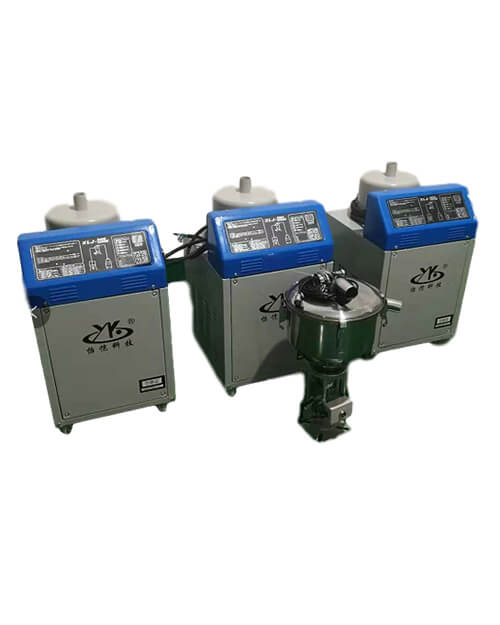

Autoloader for Plastic Material Transfer System
The vacuum loader is used for transferring plastic pellets and regrinds from the material source to a hopper or bin. The autoloaders are applicable for injection molding, plastic granulation, rubber molding, die casting, blow molding, and more.
Features
- The self-contained hopper loader and remote mount control system feature an easy operation and excellent safety.
- The stainless steel hopper protects materials against contamination.
- The microprocessor control system provides simple operations and precise control. Multiple alarms with indicators improve the operation safety.
- A motor protection device extends the service life.
- Materials shortage alarm.
- Independent filter for easy dust removal and cleaning.
- A vacuum hopper can be mounted directly on the molding machine hopper. A photosensor hopper can also be installed on the molding machine's feeder port.
- A dust collector is optional for powdery plastics loading, reducing the time needed to clean the filter.
Technical specifications
| Model | YKXL-07-700G | YKXL-07-800G | YKXL-07-800G2 | YKXL-07-900G | YKXL-07-900G3 |
| Motor type | Carbon brush motor | Induction motor | Induction motor | Induction motor | Induction motor |
| Motor specification | 1.1KW/1.3HP 1φ | 1.1KW/1.5HP 3φ | 2.2KW/3HP 3φ | 1.5KW/2HP 3φ | - |
| Conveying capacity（kg/h） | 260 | 590 | 630 | 400+400 | 200+200 |
| Conveying distance（m） | 4 | 4 | 5 | 4+4 | 5+5+5 |
| Static wind pressure（mm/H₂O） | 1550 | 1800 | 2400 | 2400 | 2400 |
| Hopper capacity（L） | 7.5 | 10 | 10 | 7.5+7.7 | 7.5+7.7+7.5 |
| Feeding pipe inner dia.（mm） | φ38 | φ38 | φ38 | φ38 | φ38 |
| Conveying pipe（mm） | φ38*4m 2pcs | φ38*3.5m 1pcs | φ38*5m 2pcs | φ38*4m 4pcs | φ38*5m 6pcs |
| Main machine dimensions（mm） | 370*300*560 | 420*380*640 | 500*400*720 | 600*370*710 | 600*370*710 |
| Hopper dimensions（mm） | 280*340*430 | 450*320*450 | 450*320*450 | 280*340*430（2pcs） | 280*340*430（2pcs） |
| Main machine weight（kg） | 14 | 47 | 66 | 55 | 58 |
| Hopper weight（kg） | 6 | 7 | 7 | 6（2pcs） | 6（3pcs） |
Note: for long-distance mateiral conveying, we reconmmend Model 800G or 900G.
