Air Cooled Temperature Control Unit

  • Air Cooled Temperature Control Unit

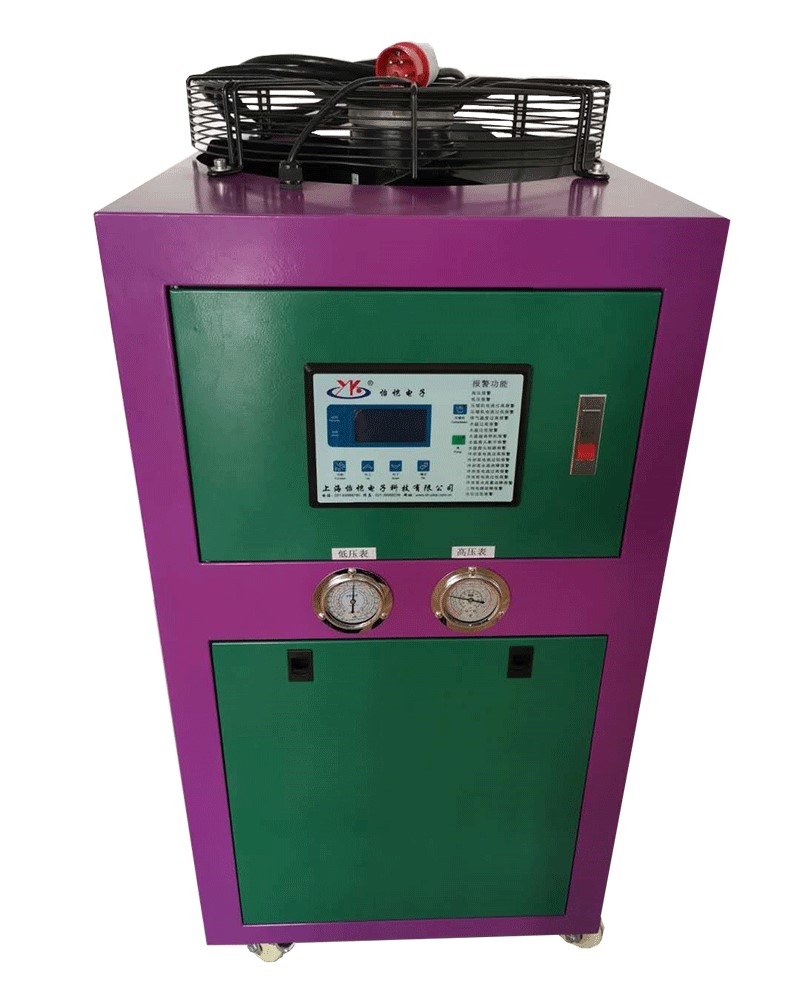

    The overall air cooled temperature control unit
  • Air Cooled Temperature Control Unit

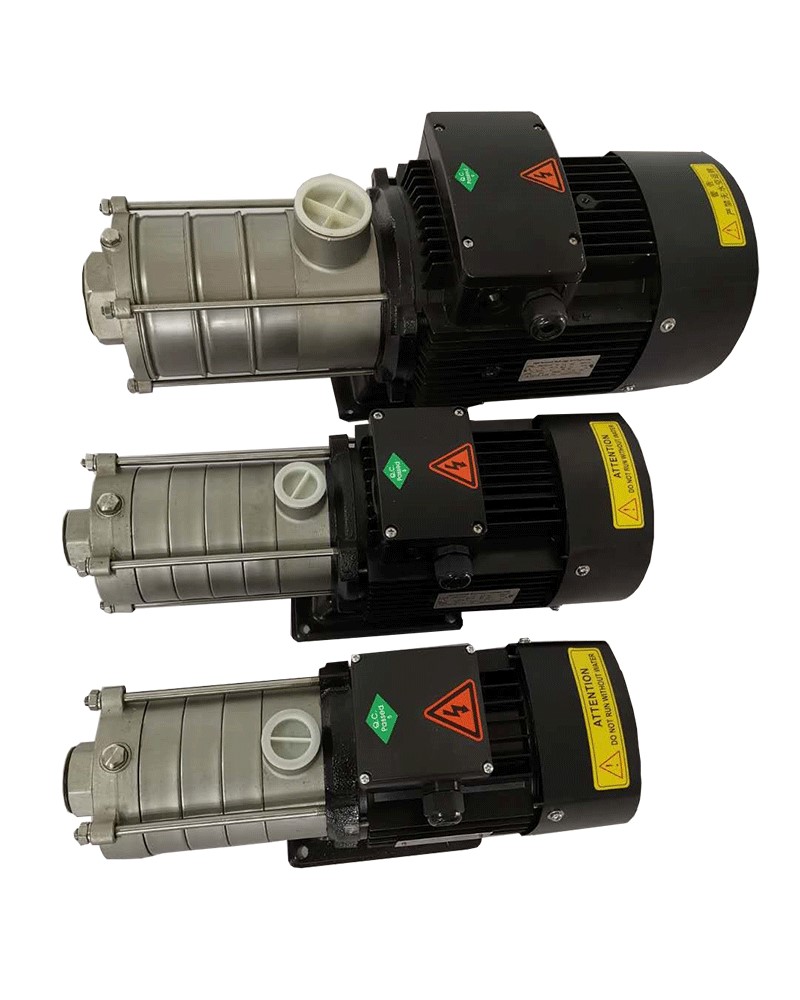

    304 stainless steel multistage pump
  • Air Cooled Temperature Control Unit

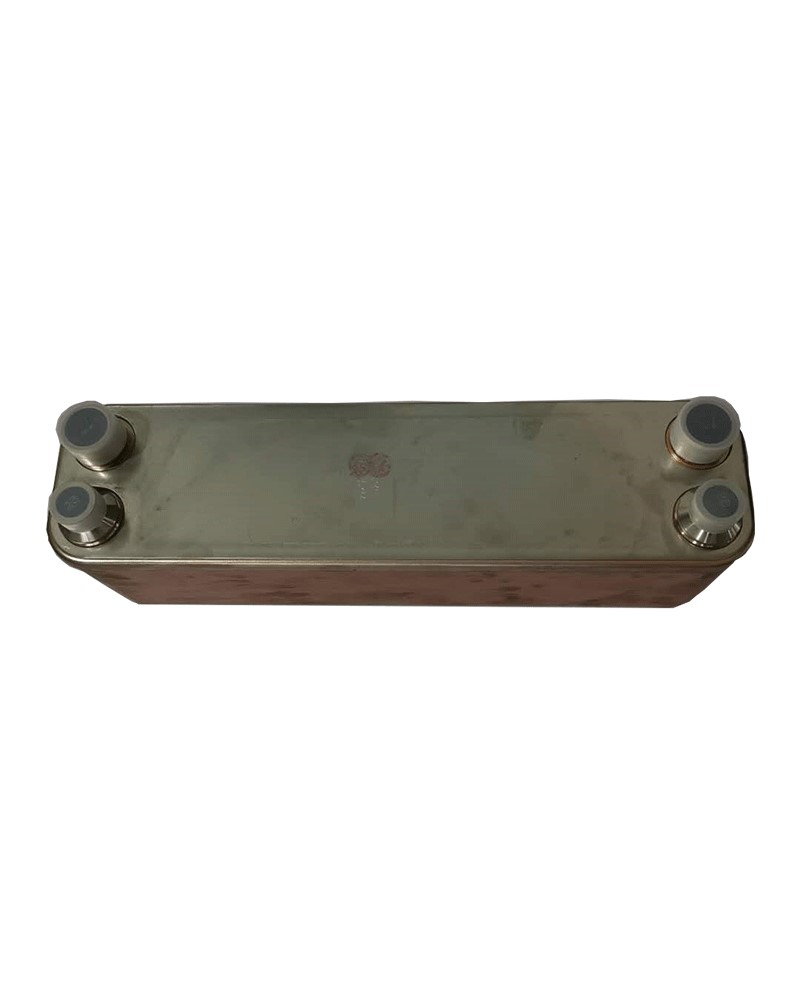

    316 stainless steel plate evaporator
  • Air Cooled Temperature Control Unit

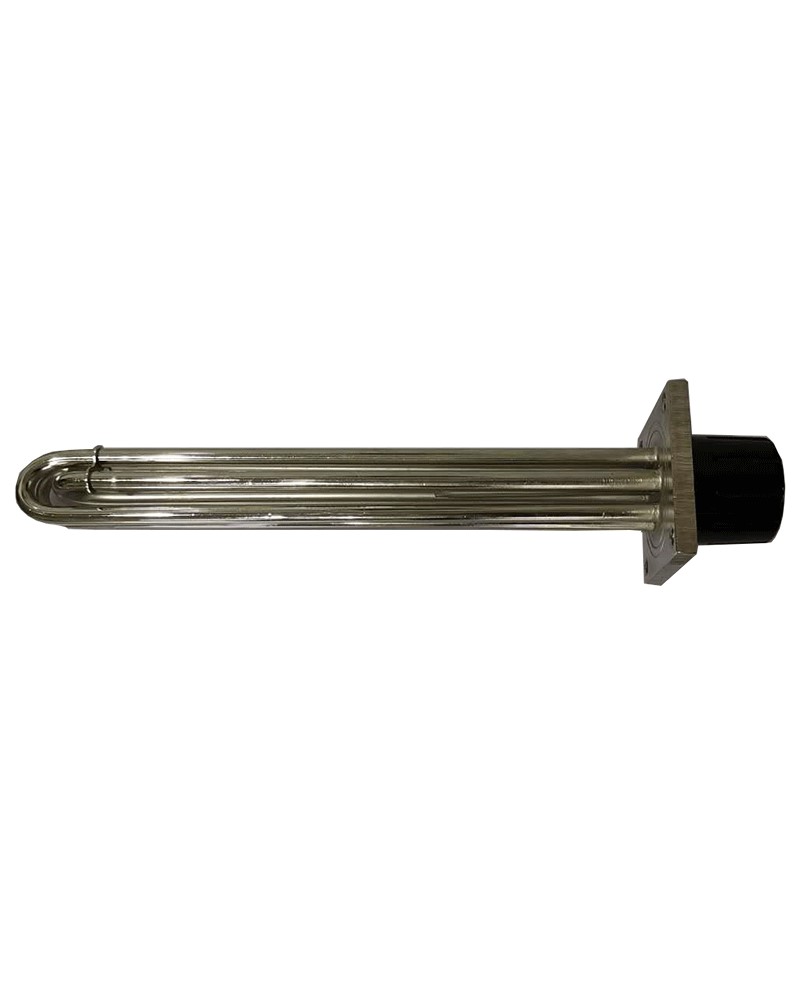

    316 stainless steel heating tube
Features
  • The heater and cooling device are combined, allowing the unit to maintain a constant water temperature within a range of 5℃~90℃.
  • An SSR is used as the heating module, featuring a high durability and extended service life.
  • Advanced compressors with built-in safety devices achieve a low noise, low energy consumption performance with an excellent durability.
  • Reliable Alco expansion valves.
  • The evaporator is made of a 316 stainless steel plate heat exchanger, delivering an excellent cooling performance with a 30% efficiency improvement.
  • The water tank, piping and pumps are made of SUS304 stainless steel, and feature an excellent resistance to corrosion and pressure with an exceptional durability and reliability.
  • The microcomputer-based control system will automatically control and monitor the machine operation in real-time, offering a better stability, higher precision and lower failure rate.
  • Alarms and protections for refrigerant over high or low pressure, overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss, and more.
  • Durable high-pressure and large-flow stainless steel magnetic pumps ensure a consistent temperature and enhance the molding stability.
Technical specifications
Model Item YK-CWF-H-3 YK-CWF-H-5 YK-CWF-H-8 YK-CWF-H-10 YK-CWF-H-15
Temperature range 5-90℃
Medium Water
Cooling capacity (KW) 10℃ 7.5 12.6 20.5 26.5 41.5
15℃ 9 14.8 24 31 49
Compressor Power（KW） 2.2 3.7 6 7.5 11.2
Heater power 6 9 9 12 12
Refrigerant R22 R407C R410A
Evaporator Type 316 stainless steel plate evaporator
Condenser High efficiency aluminum brazed finned tube condenser
Cooling fan Power（KW） 0.24*1 0.38*1 0.38*2 0.38*2 0.8*2
Air flow（m/h） 4000 6000 6000*2 6800*2 12200*2
Water tank capacity (L) 60 120 150
Process pump Power（KW） 0.55 0.75 1.5 2.2
Max. pressure（MPa） 0.36 0.37 0.39 0.5
Max. flow（L/min） 50 90 150 200
Cooling water flow（L/min） 50 76 115 139 206
Weight（Kg） 245 265 345 370 490
Total power（KW） 8.75 13.5 16.5 21 25.4
Breaker capacity（A） 63(200V, 3P) 100(200V, 3P) 100(200V, 3P) 100(200V, 3P) 125(200V, 3P)
25(380V, 3P) 32(380V, 3P) 40(380V, 3P) 63(380V, 3P) 63(380V, 3P)
Supply voltage AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1100*540*1000 1300*640*1150 1300*700*1300

The cooling capacity is the value of the cooling water 7℃, inlet cooling water 30℃ and outlet cooling water 35℃. In addition to regular models, customized air-cooled temperature control units in different and customized specifications are available to meet unique production needs.
