The YK-D-15A hot runner temperature controller uses a single control card for independent control over a single temperature stage. Each control card is fully interchangeable.
Functions
The use of FUZZY PIDD control technology allows this equipment to adapt to different heating modes, even when there are no PID parameters set. This significantly improves the working efficiency.
An automatic ambient temperature linear compensation enhances the hot runner temperature controller's accuracy.
Automatic cold junction compensation prevents any errors caused by changes in the environmental temperature.
Temperature memory function: if the temperature controller is cut off while in a constant temperature condition, the temperature controller will alarm and automatically remember temperature parameters, then maintain the temperature to prevent production downtime loss caused by an open thermocouple.
Alarms and protection functions.
Unique advantages
Alarm for wrong connections in the hot runner power lines and temperature controller lines. This is one of Yikai's patented technology pieces, ensuring customers can prevent production losses caused by a shorted thermocouple.
Alarm for neutral wire loss or incorrect connections of the neutral wire or live wire. The YK-D-15A hot runner temperature controller effectively eliminates economic losses caused by shorted temperature controllers.
Technical specifications
Item
Spec.
Supply voltage
185-250VAC
Frequency range
50-60HZ
Operating temperature
-20—60℃
Storage temperature
-30—70℃
Fuse
16A10×38mm
Thermocouple
Type J or Type K (software selectable)
Temperature range
45—537℃
Sample rate
0.1S
Measurement accuracy
0.1℃
Temperature control accuracy
±0.5℃
Control modes
PIDD or PID
Output power
0—3.6KW
Default setting
Item
Thermocouple
Type J
Upper limit of high temperature alarm
30℃
Lower limit of low temperature alarm
-30℃
Temperature unit
Degrees Celsius, ℃
Control mode
PIDD
Soft start
ON
Product gallery

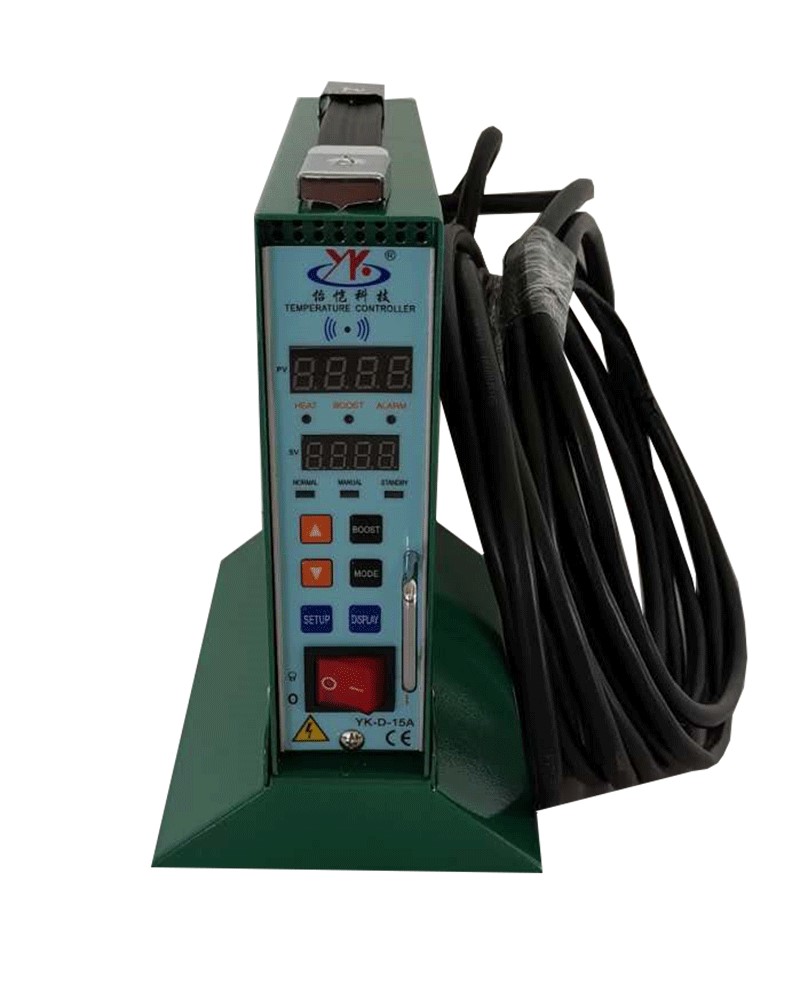

YK-D-15A-1
L250*W120*H230mm

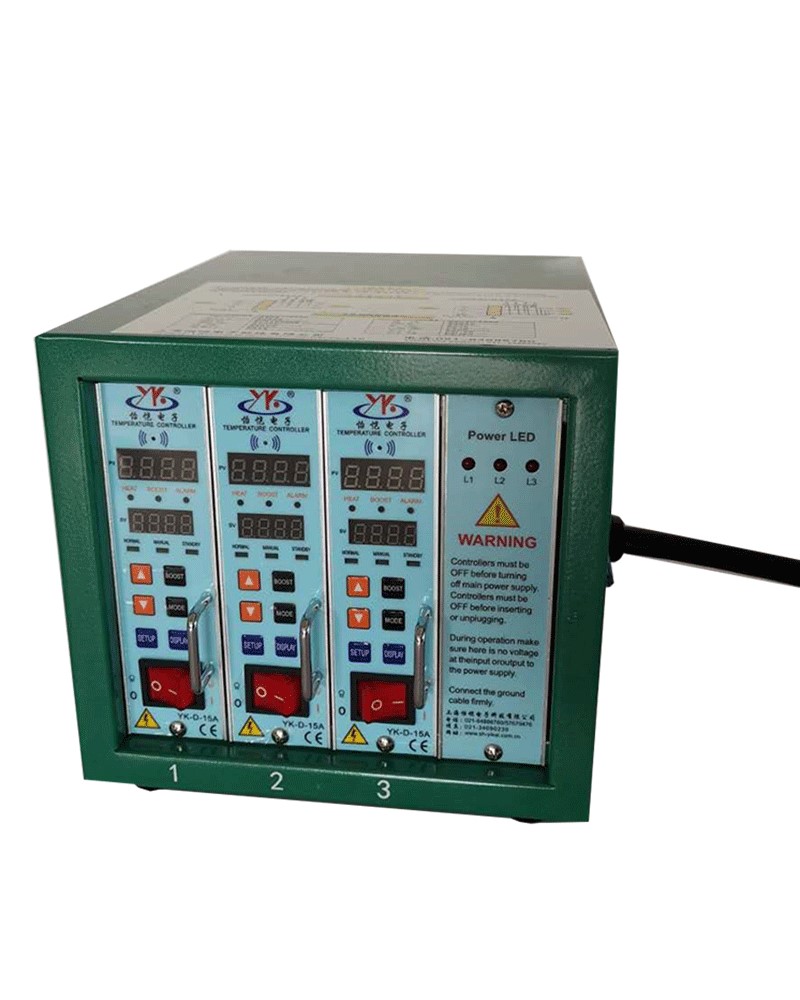

YK-D-15A-(2-3)
L250*W320*H230mm

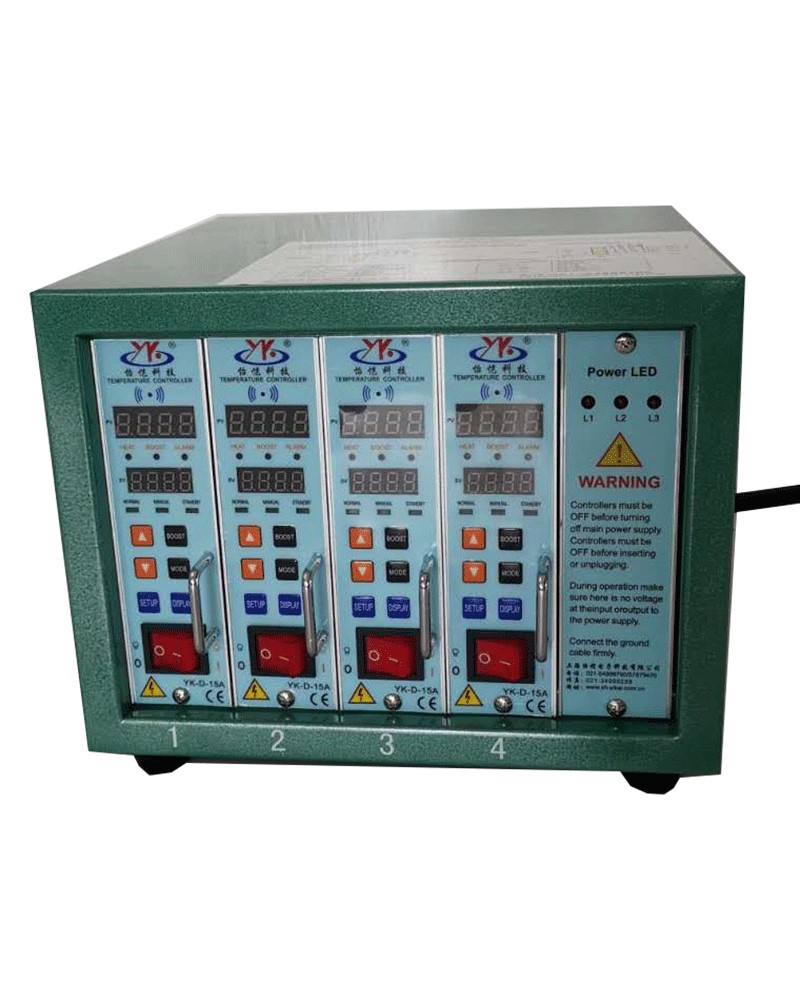

YK-D-15A-4 L300*W320*H230mm

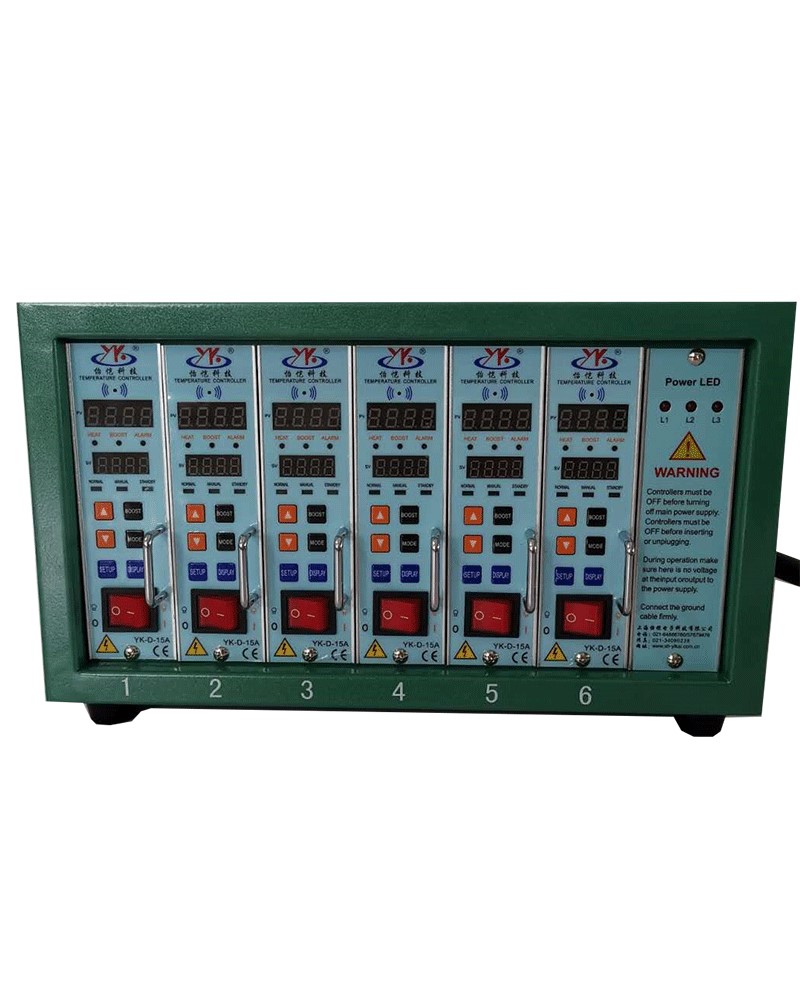

YK-D-15A-(5-6) L400*W320*H230mm

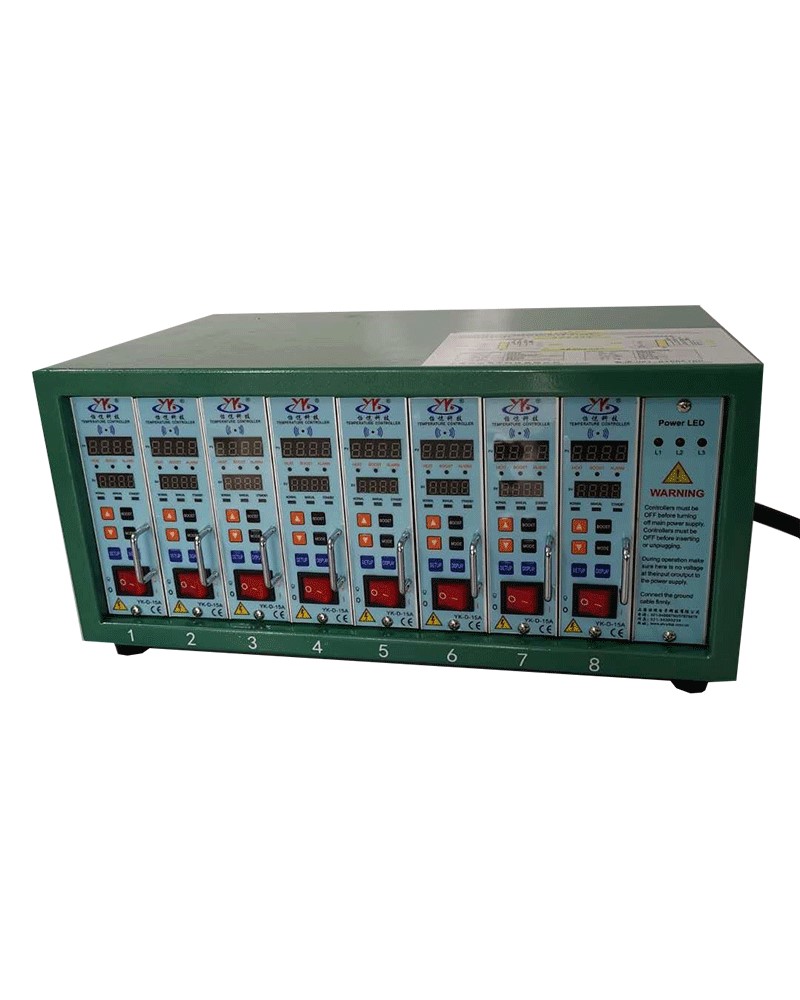

YK-D-15A-8 L500*W320*H230mm

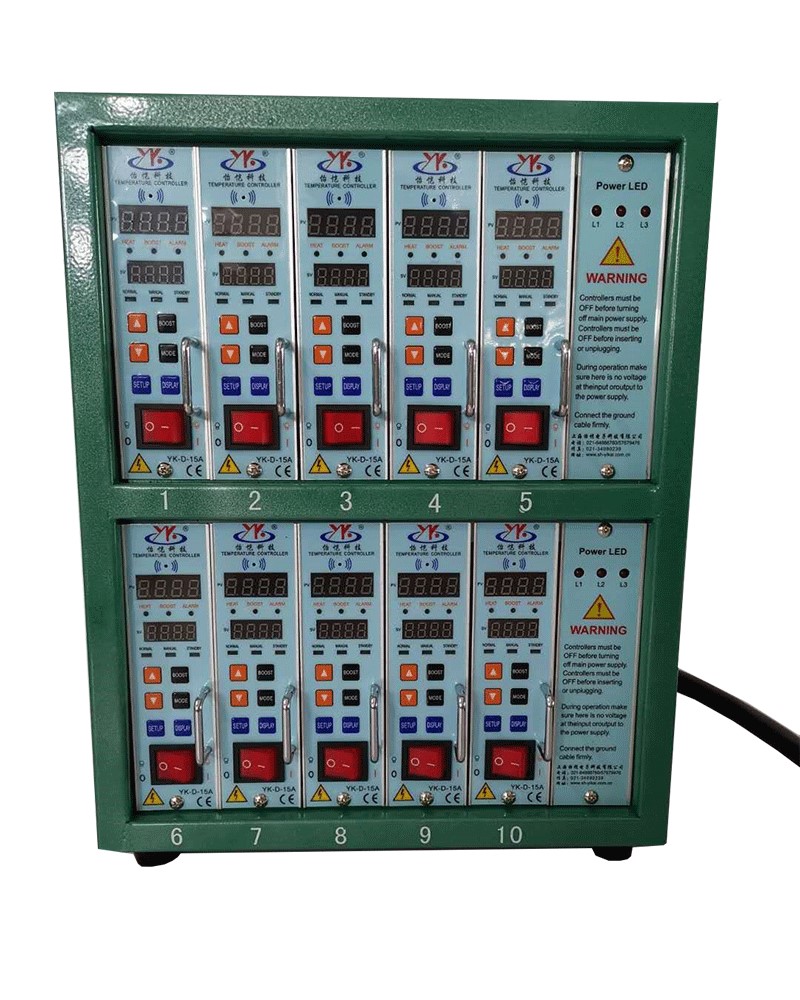

YK-D-15A-(9-10) L350*W320*H430mm

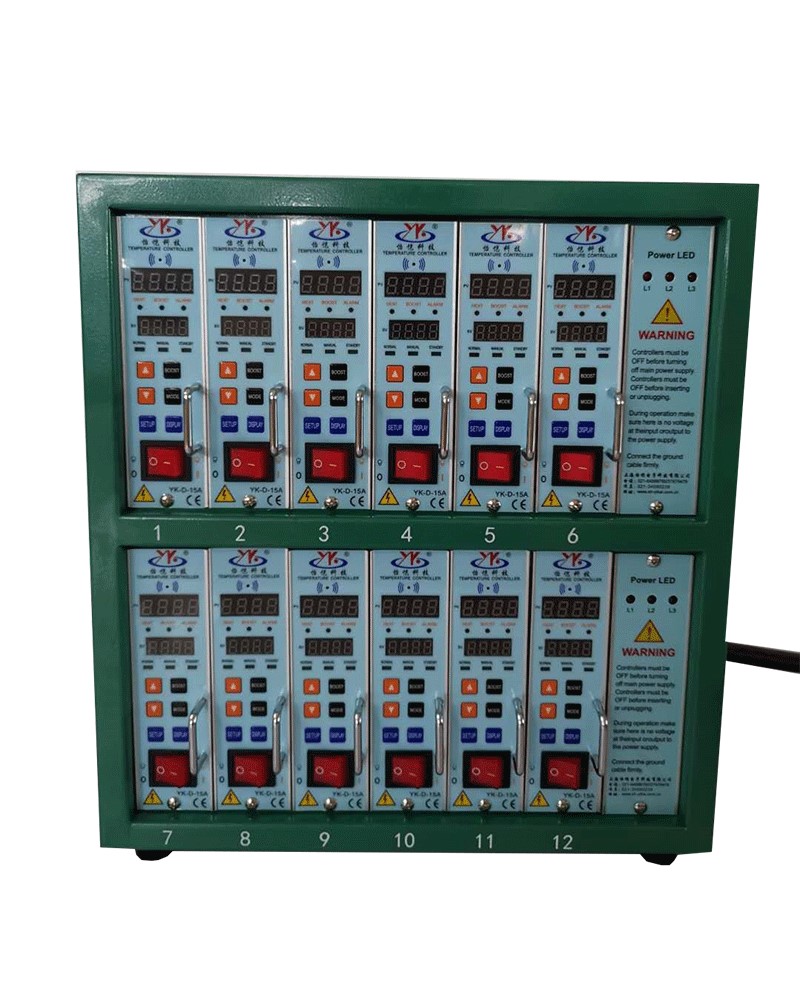

YK-D-15A-(11-12) L400*W320*H430mm

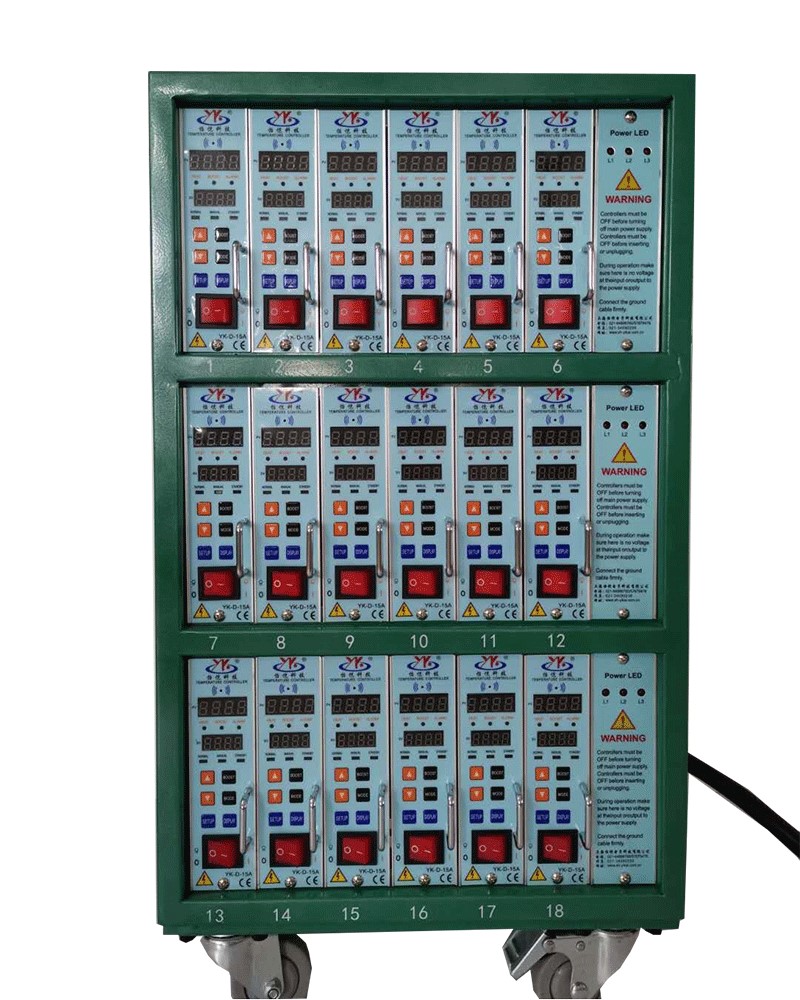

YK-D-15A-(13-18) L400*W320*H730mm

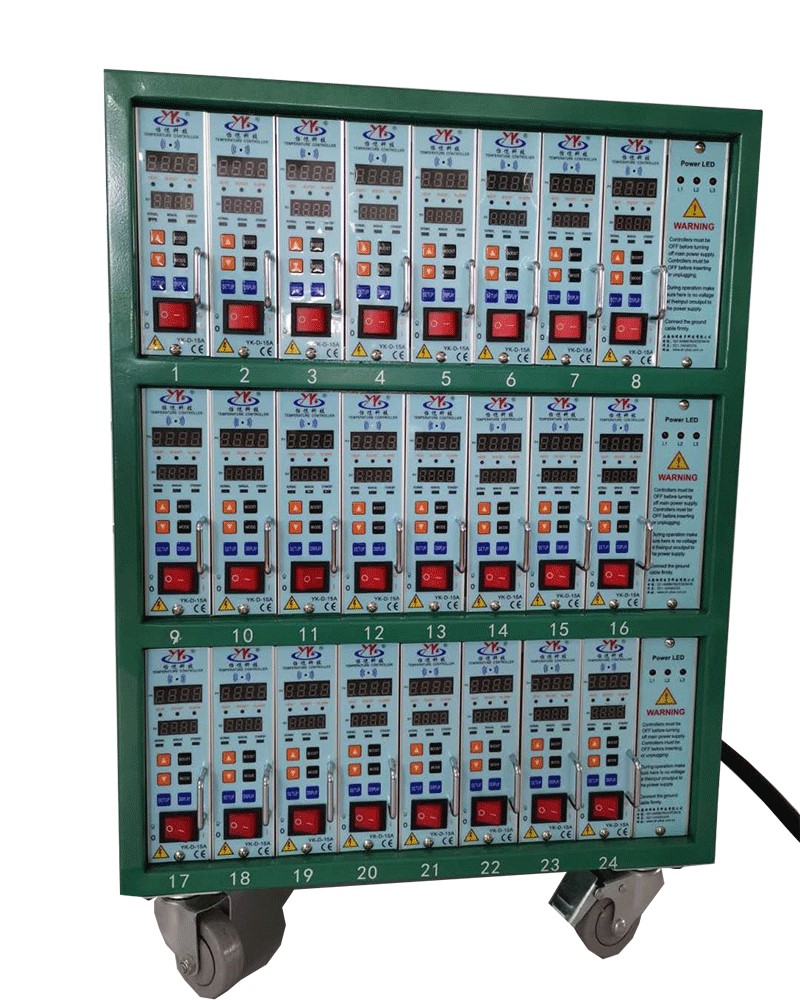

YK-D-15A-(19-24) L500*W320*H730mm

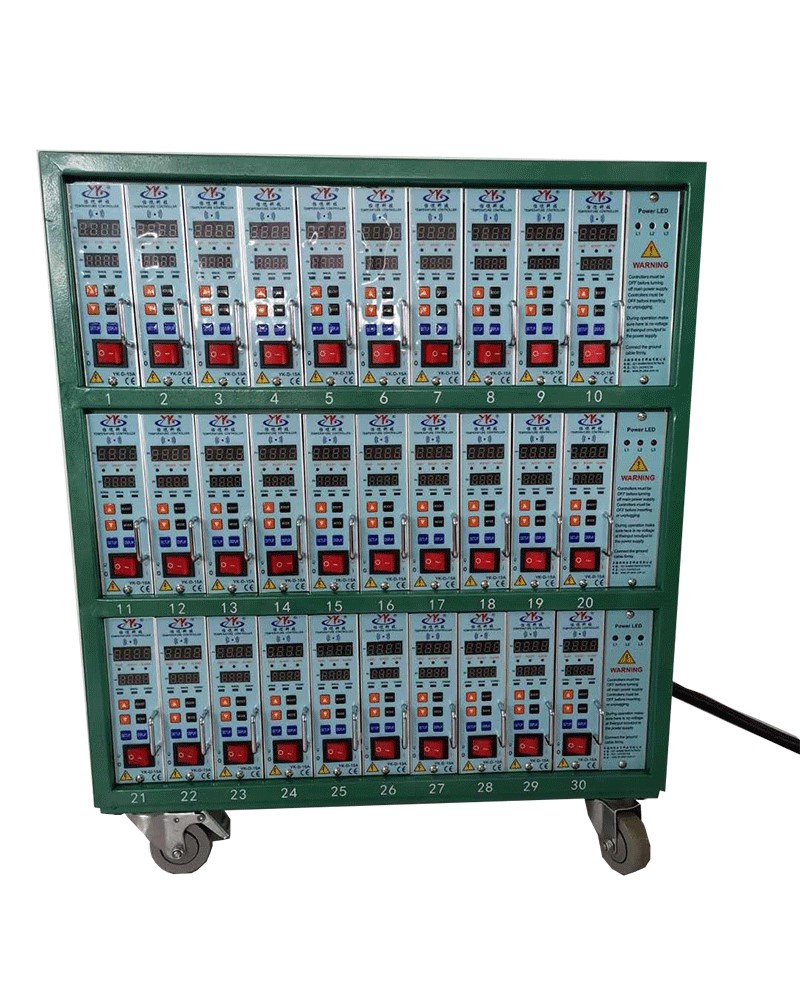

YK-D-15A-(25-30) L600*W320*H730mm

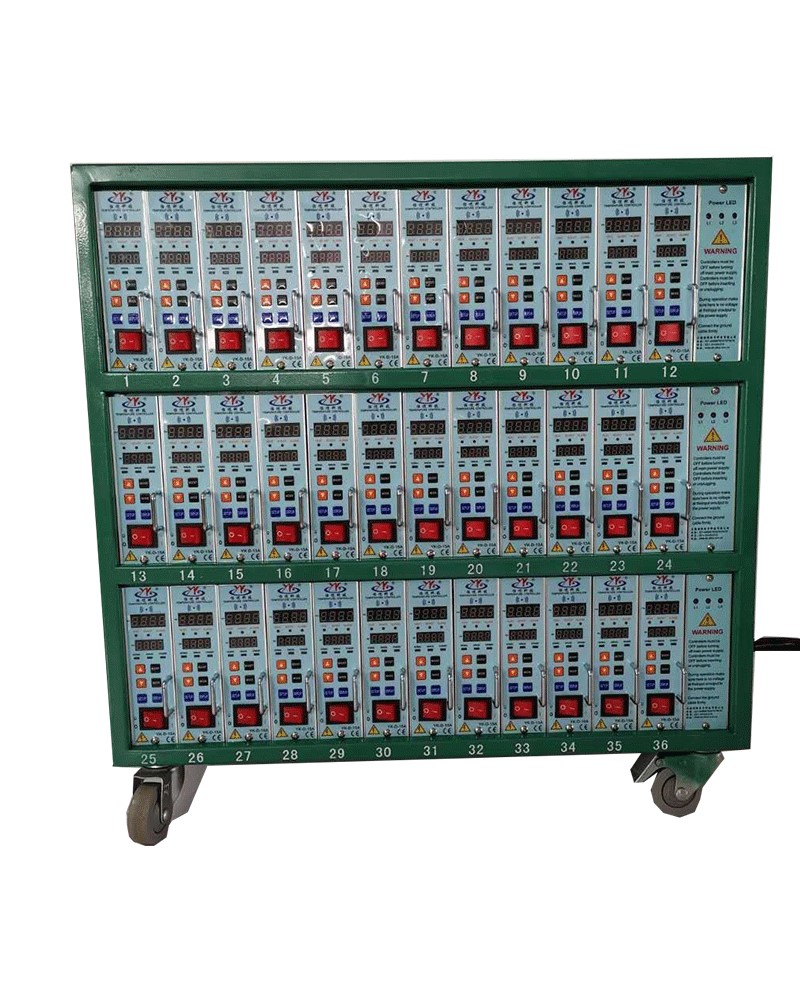

YK-D-15A-(31-36) L720*W320*H730mm
All models shown above are standard mold temperature controllers. Customized options are available upon request.
