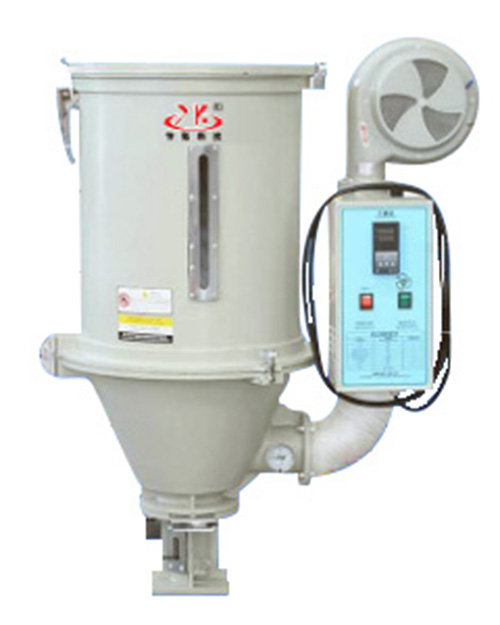

Drying Hopper

Drying Hopper

The drying hopper is designed to dry plastic pellets.

Features
  • Hot air is evenly distributed to maintain a steady temperature in the hopper and increase drying efficiency.
  • The unique bending design in the hot air pipe prevents scrap build-up at the bottom of the heater tube, thus mitigating the risk of a fire.
  • The hopper and other components are made of stainless steel to protect against material contamination.
  • The hopper and base have transparent windows for monitoring material processing.
  • The PID temperature controller achieves a precise temperature control.
  • Overheating protection ensures a reliable operation.
  • Standard drying hoppers are all equipped with an overtemperature alarm indicator, overload protector and blower contactor.
  • A self-dumping hopper is available.
  • An auto start/stop timer or an insulation hopper is optional.
Technical parameters (W: hopper diameter, L: blower width)
Model Loading capacity (KG) Heater power (KW) Blower (W) W(mm) L(mm) H(mm) Base W/L Base diameter(mm) Weight (KG)
YKDG-12SL 12 2.1 135 325 660 890 150 55 32
YKDG-25SL 25 2.7 135 385 725 1040 150 55 38
YKDG-50SL 50 3.9 155 470 840 1170 150 55 45
YKDG-75SL 75 3.9 330 530 800 1170 150 55 60
YKDG-100SL 100 6 330 595 955 1405 220 90 76
YKDG-150SL 150 6 360 590 955 1645 220 90 100
YKDG-200SL 200 12 360 750 1230 1650 220 90 150
YKDG-300SL 300 12 360 750 1230 2055 220 90 160
YKDG-400SL 400 18 410 910 1365 2270 345 105 225
YKDG-600SL 600 21 960 910 1365 2595 345 105 250
YKDG-800SL 800 24 1050 2700 1420 2700 345 105 280
YKDG-1000SL 1000 32 1100 3000 1420 3000 345 105 300
Note: ①Models YKD-12~75SL power supply: AC220V,50HZ; Models YKD-100~1000SL power supply: AC380V,50HZ.
②Loading capacity is calculated by 3-5mm plastic pellets at a stacking density of 0.65KG/L.
Tags
Injection molding machine components Replacement parts for molding machines Injection molding machine spare parts Injection molded parts manufacturer China injection molded parts Mold hotrunner solutions
Product List
  • Hot Runner Temperature Controller
    1. Hot Runner Temperature Controller, YK-D-15A Series
    2. Hot Runner Temperature Controller, YK-C01 Series
  • Hot Runner Sequential Controller
    1. TMS-001 Hot Runner Sequential Controller
    2. YKT-Q-4(8) & YTK-Y-4(8) Hot Runner Sequential Controller
    3. YKT-C Hot Runner Sequential Controller
  • Water Temperature Control Unit
    1. 120℃ Water Temperature Control Unit, Single Zone
    2. 120℃ Water Temperature Control Unit, Dual Zone
    3. 180℃ Water Temperature Control Unit
  • Oil Temperature Control Unit
    1. 180℃ Oil Temperature Control Unit
    2. 350℃ Oil Temperature Control Unit
  • Industrial Chiller
    1. Water Cooled Chiller
    2. Air Cooled Chiller
    3. Water Cooled Temperature Control Unit
    4. Air Cooled Temperature Control Unit
  • Oil Chiller
  • Granulator
    1. High Speed Granulator
    2. Medium Speed Granulator
    3. Low Speed Granulator
  • Drying Equipment for Plastic Industry
    1. Drying Hopper
    2. Silo Dehumidification System
  • Vacuum Loader, Conveying Machine
  • Hydraulic Power Units
  • Air Pressure Amplifier
  • Heavy Duty Connectors
Other Products

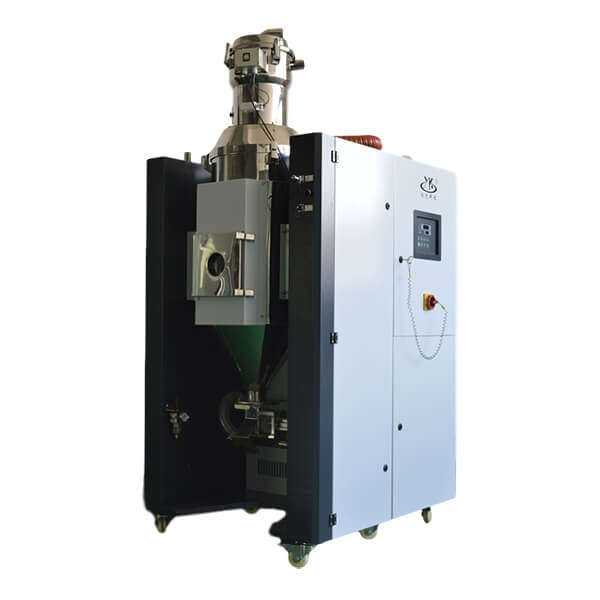

    1. Silo Dehumidification System
    2. Silo Dehumidification System

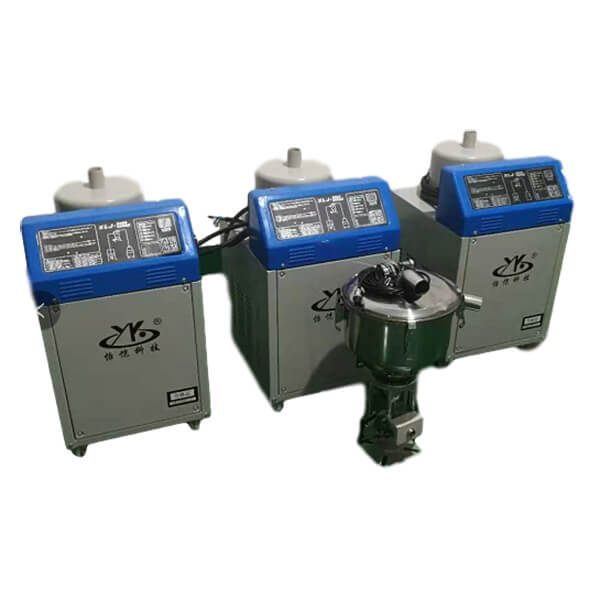

    1. Vacuum Loader, Conveying Machine
    2. Vacuum Loader, Conveying Machine

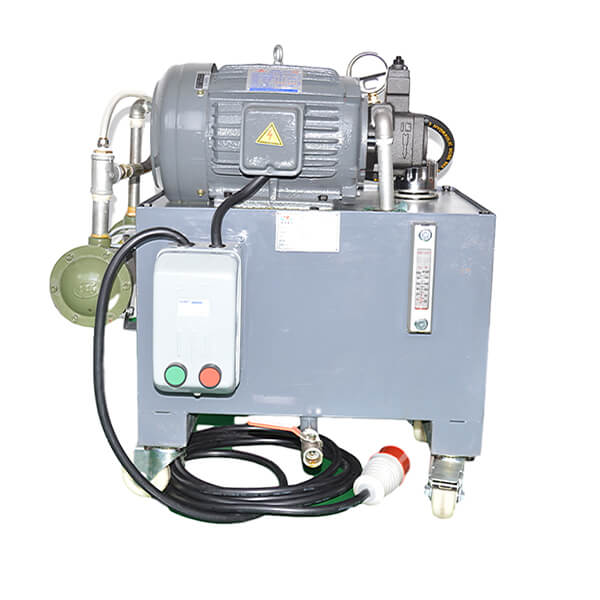

    1. Hydraulic Power Units
    2. Hydraulic Power Units

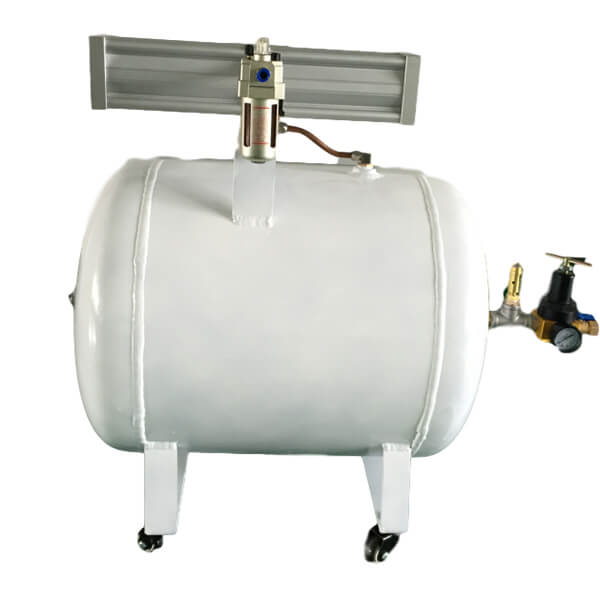

    1. Air Pressure Amplifier
    2. Air Pressure Amplifier

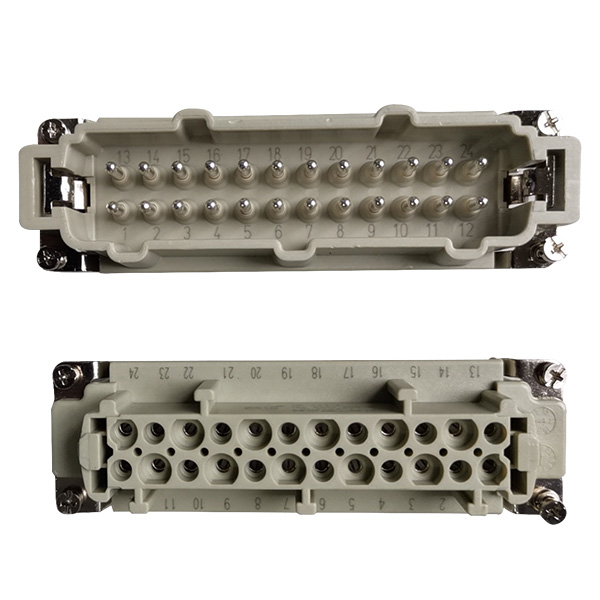

    1. Heavy Duty Connectors
    2. Heavy Duty Connectors

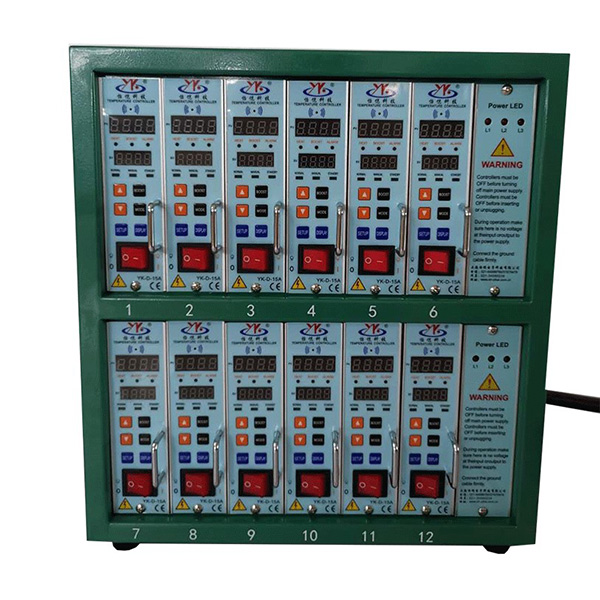

    1. Hot Runner Temperature Controller, YK-D-15A Series
