Water Cooled Temperature Control Unit

  • Water Cooled Temperature Control Unit

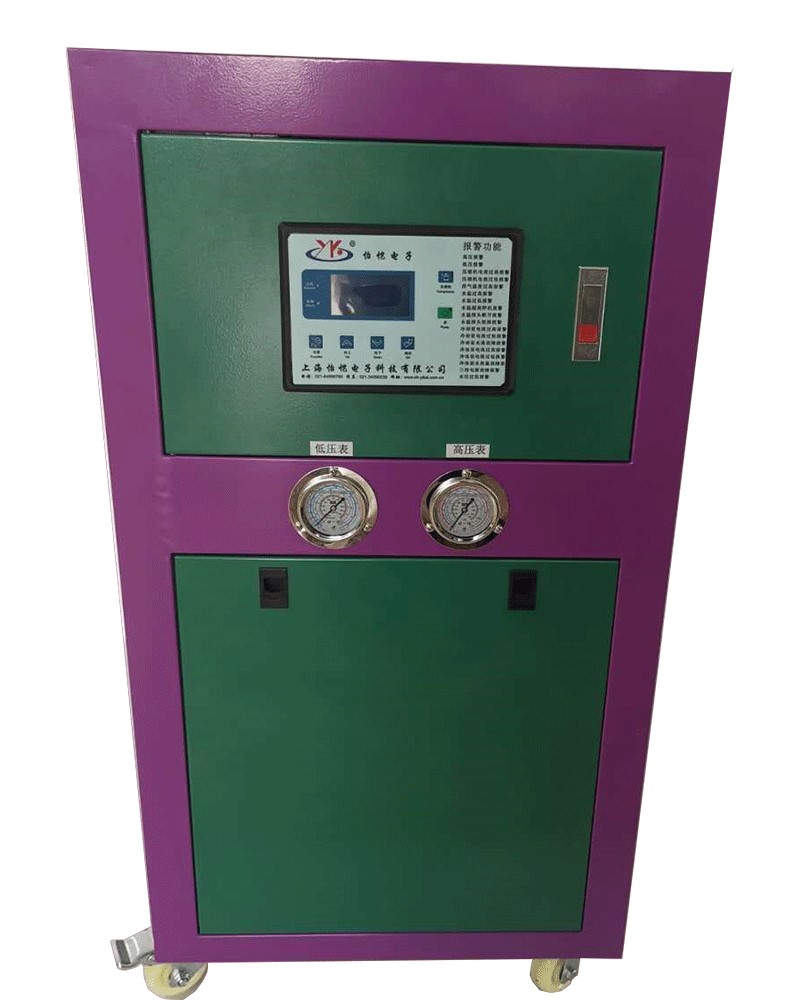

    The overall water cooled temperature control unit
  • Water Cooled Temperature Control Unit

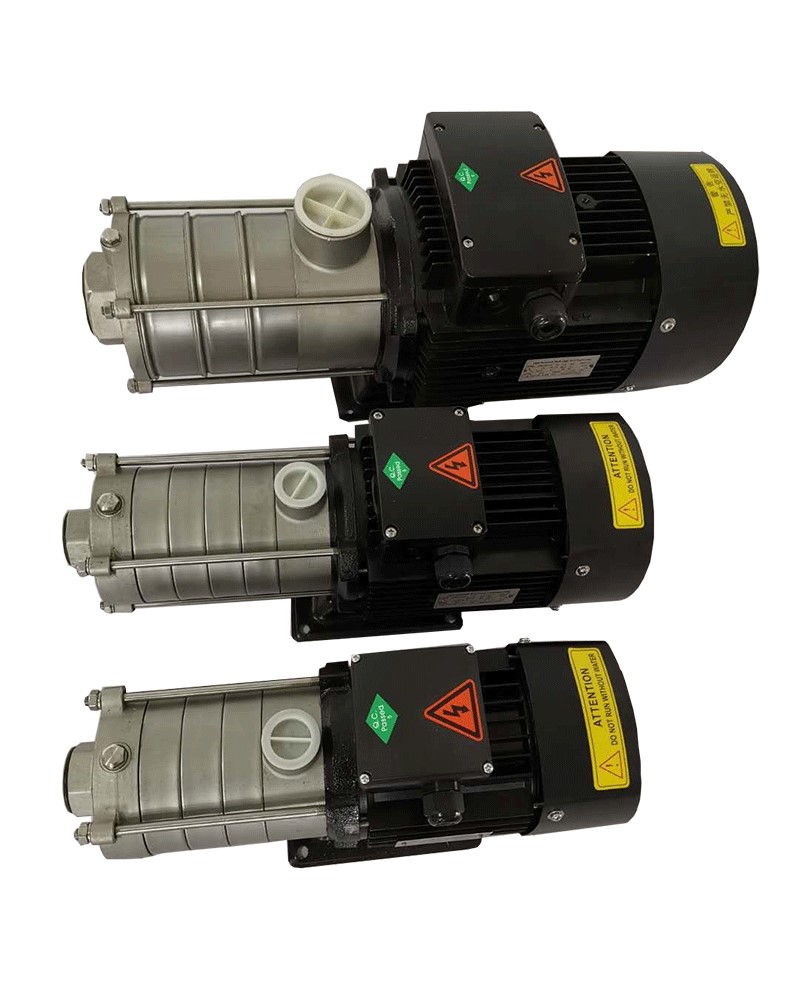

    304 stainless steel multistage pump
  • Water Cooled Temperature Control Unit

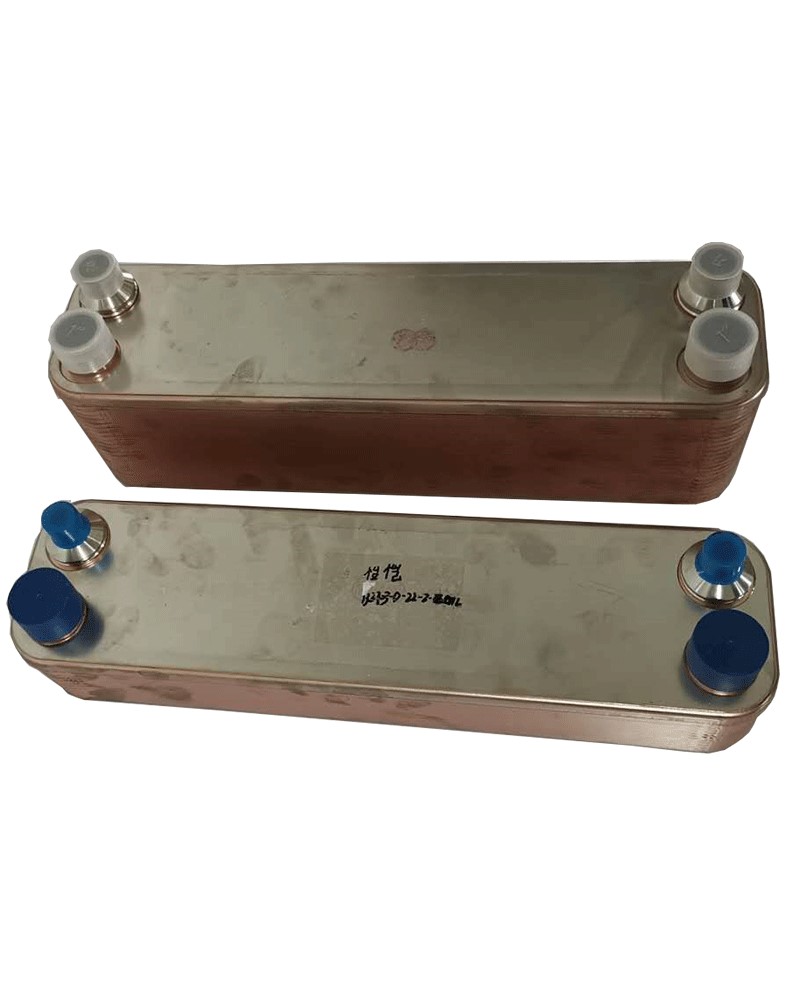

    316 stainless steel plate condenser and evaporator
  • Water Cooled Temperature Control Unit

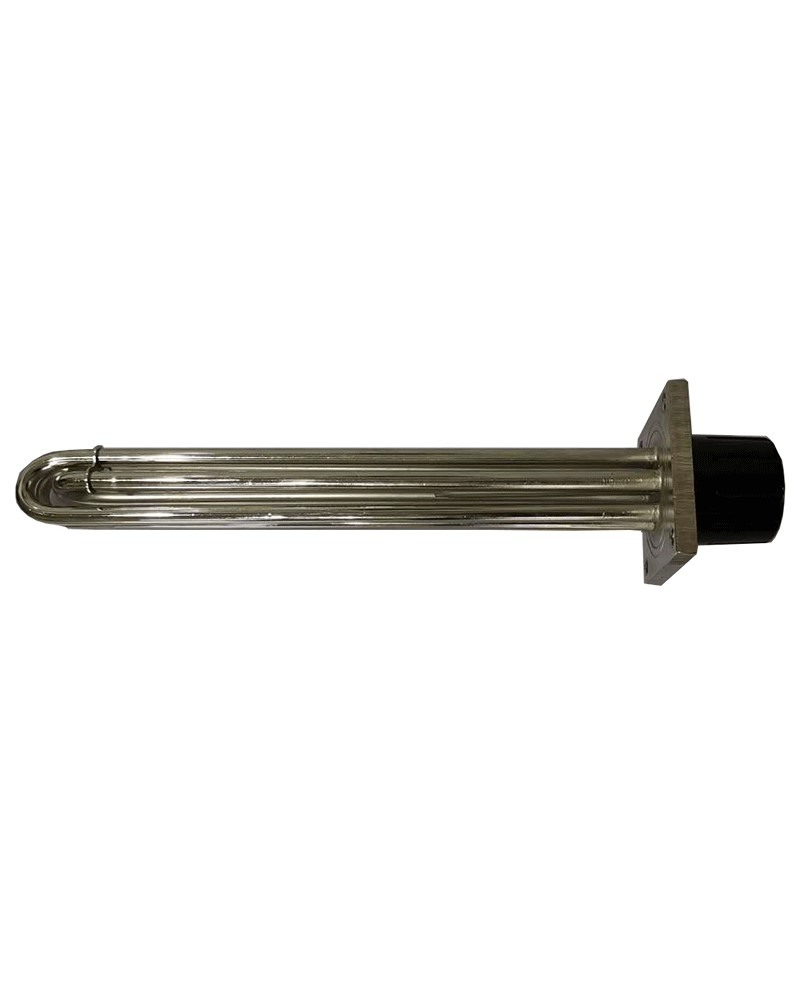

    316 stainless steel heating tube
Features
  • This industrial temperature control unit combines cooling and heating devices to control the water temperature within a range of 5℃~90℃.
  • The heating module with a solid-state relay is exceptionally durable and reliable.
  • A branded and reliable compressor with built-in safety protection devices features a low noise, high durability and energy efficiency.
  • Alco thermostatic expansion valves.
  • The condenser and evaporator are made of 316 stainless steel plate heat exchangers to increase the cooling efficiency by 30%.
  • An SUS304 stainless steel water tank, piping and pump have an excellent resistance to corrosion and pressure, an excellent durability and an outstanding stability.
  • The microprocessor-based control system will automatically control and monitor the machine operations with an excellent stability, high precision and low failure rate.
  • Alarms and protections for refrigerant over high or over low pressure, compressor motor overload, abnormal refrigeration, abnormal temperature of cooling medium, temperature probe disconnection, phase reversal or loss, and more.
  • Durable high-pressure and large-flow stainless steel magnetic pumps are used to offer a uniform molding temperature, increase piping cleanliness, and improve production stability.
Technical specifications
Model YK-CWS-H-3 YK-CWS-H-5 YK-CWS-H-8 YK-CWS-H-10 YK-CWS-H-15
Temperature range 5-90℃
Medium Water
Cooling capacity (KW) 10℃ 7.5 12.6 20.5 26.5 41.5
15℃ 9 14.8 24 31 49
Compressor Power（KW） 2.2 3.7 6 7.5 11.2
Heater power 6 9 9 12 12
Refrigerant R22 R407C R410A
Evaporator Type 316 stainless steel plate evaporator
Condenser 316 stainless steel plate condenser
Water tank capacity (L) 60 120 150
Medium process pump Power（KW） 0.55 0.75 1.5 2.2
Max. pressure（MPa） 0.36 0.37 0.39 0.5
Max. flow（L/min） 50 90 150 200
Cooling water flow（L/min） 50 76 115 139 206
Weight（Kg） 245 265 345 370 490
Total power（KW） 8.75 13.5 16.5 21 25.4
Breaker capacity（A） 63(200V, 3P) 100(200V, 3P) 100(200V, 3P) 100(200V, 3P) 125(200V, 3P)
25(380V, 3P) 32(380V, 3P) 40(380V, 3P) 63(380V, 3P) 63(380V, 3P)
Supply voltage AC200V±10%/ 60Hz 3P AC380V±10% 50Hz 3P
Alarms Refrigerant over high or over low pressure, compressor or process pump overload, abnormal refrigeration, abnormal temperature of coolant fluid, temperature probe disconnection, phase reversal or loss
Dimensions（W×D×Hmm） 1100*540*1000 1300*640*1150 1300*700*1300

The cooling capacity is the value of the cooling water 7℃, inlet cooling water 30℃ and outlet cooling water 35℃. In addition to regular models, customized water-cooled temperature control units in a variety of different specifications can be provided according to your production needs.
