The YK-C01 hot runner temperature controller features an integrated touch screen and interchangeable control cards. One card can control 4 different temperature stages.
Features
Integration design: The temperature and time control functions are combined to reduce machine size. This mold controller achieves a precise temperature control of up to 128 zones and 32 sets of time control units.
Simple and user-friendly interface: The fixed or handheld touchscreen displays the running status, setpoint temperature, actual process temperature, index, and thermocouple model.
Easy and fast operations: The temperature at each stage can be set individually or uniformly. The temperature unit and thermocouple model are easily set in a single process, while different functions can be turned on or off individually, or all at once.
The hot runner parameters are easily stored for the next production, thereby reducing cycle time.
Alarm information can be stored for later inspection. The temperature controller also provides alarms for a damaged heater, damaged fuse, open, shorted, or reversed thermocouples, and a high or low temperature.
Technical specifications
Item
Spec
Supply voltage
380VAC
Frequency range
50—60HZ
Operating temperature
-20—60℃
Storage temperature
-30—70℃
Fuse
16A, 10×31mm
Thermocouple
Type J or Type K (selectable)
Setting temperature range
0—600℃
Sample rate
0.1s
Measurement accuracy
0.5℃
Temperature control accuracy
±1℃
Control modes
PIDD
Output power
0—3.6KW
Upper limit of high temperature alarm
25℃ (default setting)
Lower limit of low temperature alarm
25℃ (default setting)
Product gallery

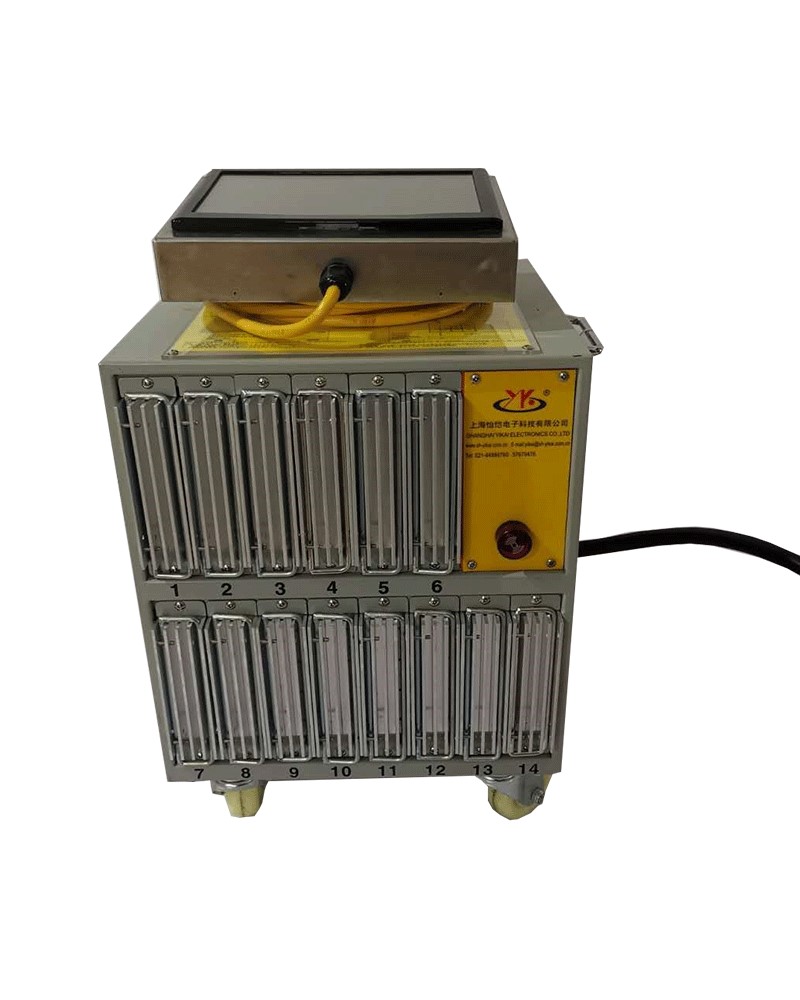

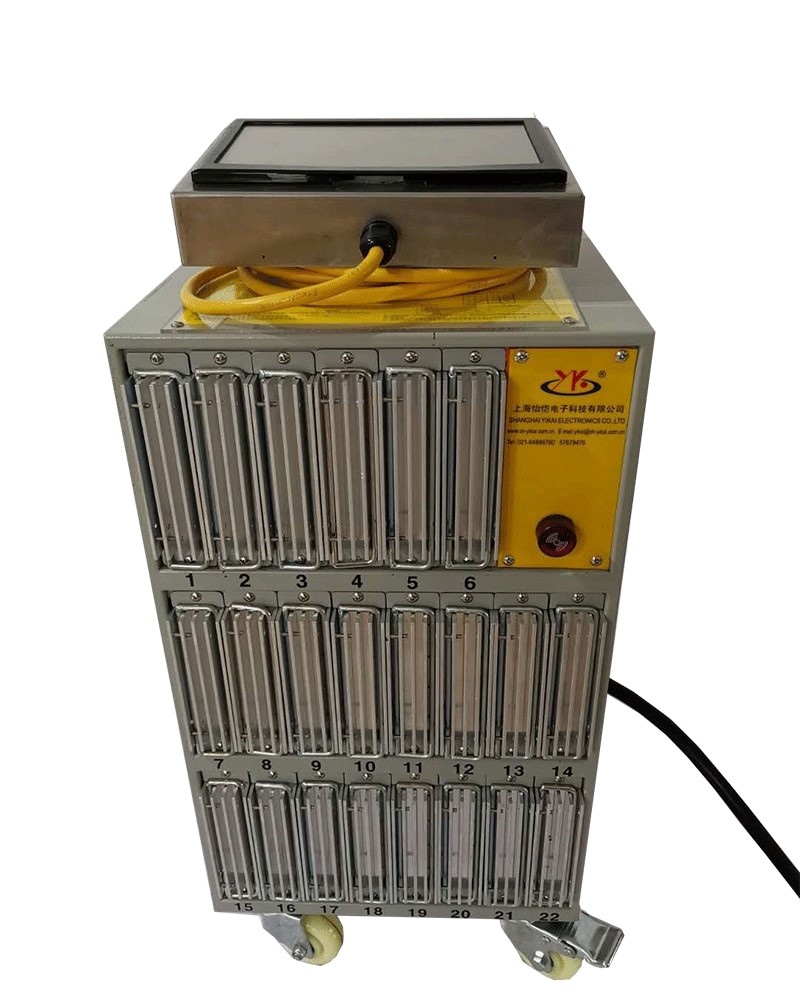

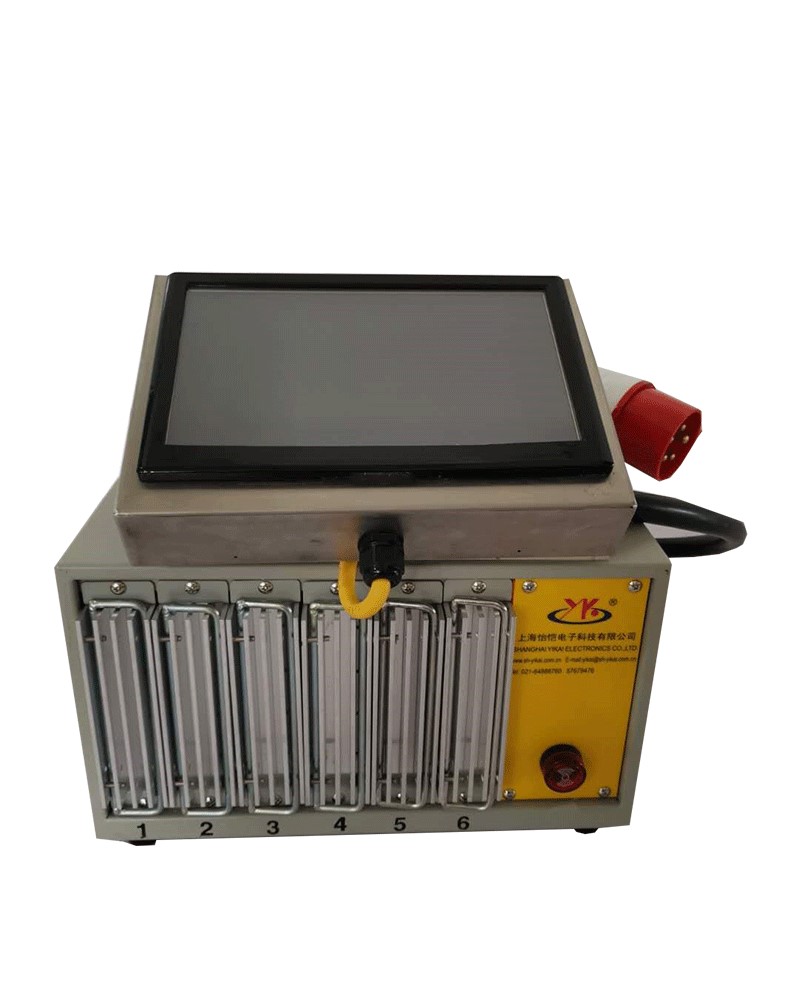

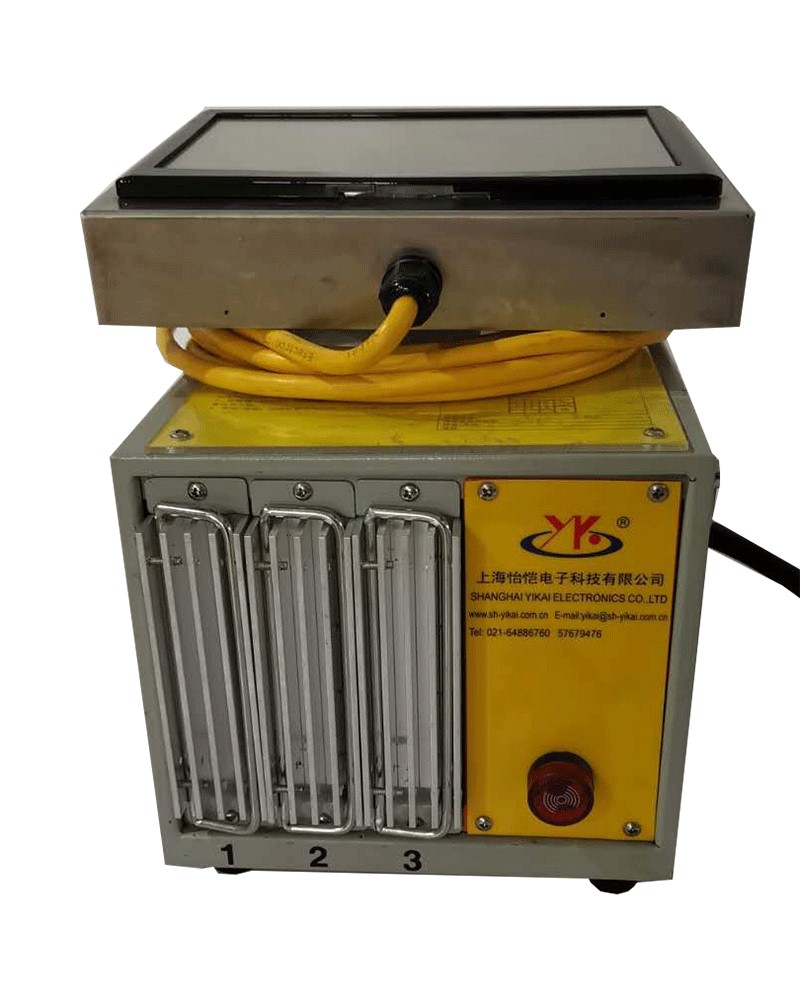

The touch screen and case can be placed separately.
YK-C01-(4-12) L240*W350*H230mm
YK-C01-(16-24) L370*W350*H230mm
YK-C01-(28-56) L370*W350*H510mm
YK-C01-(60-88) L370*W350*H750mm

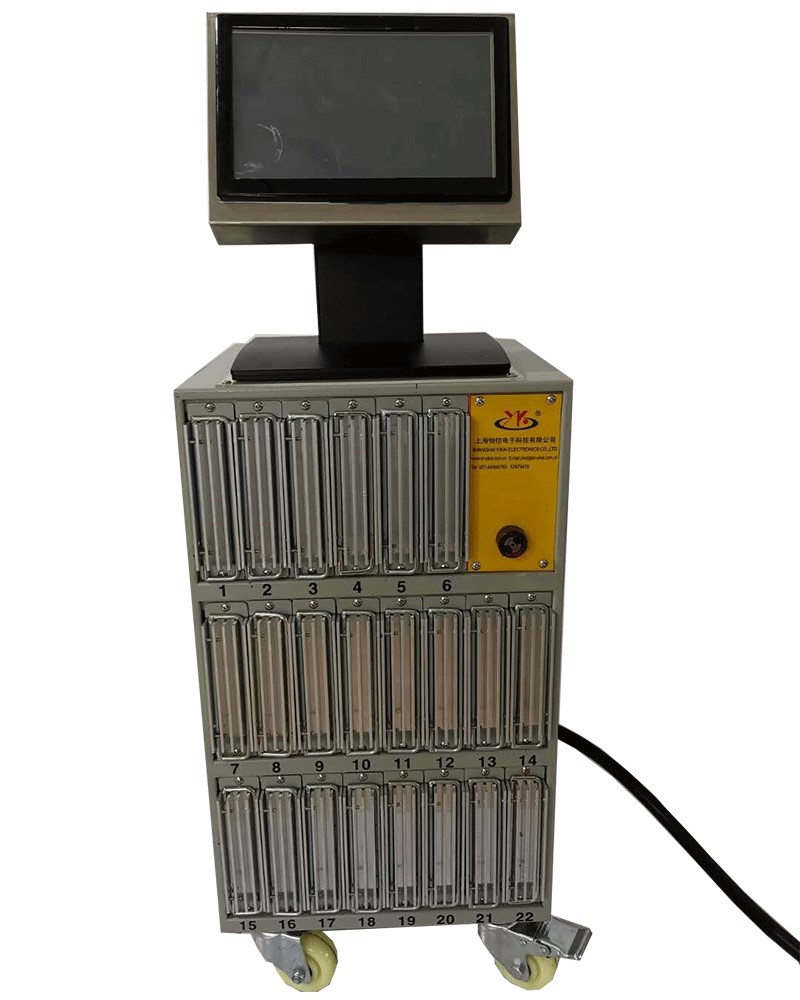

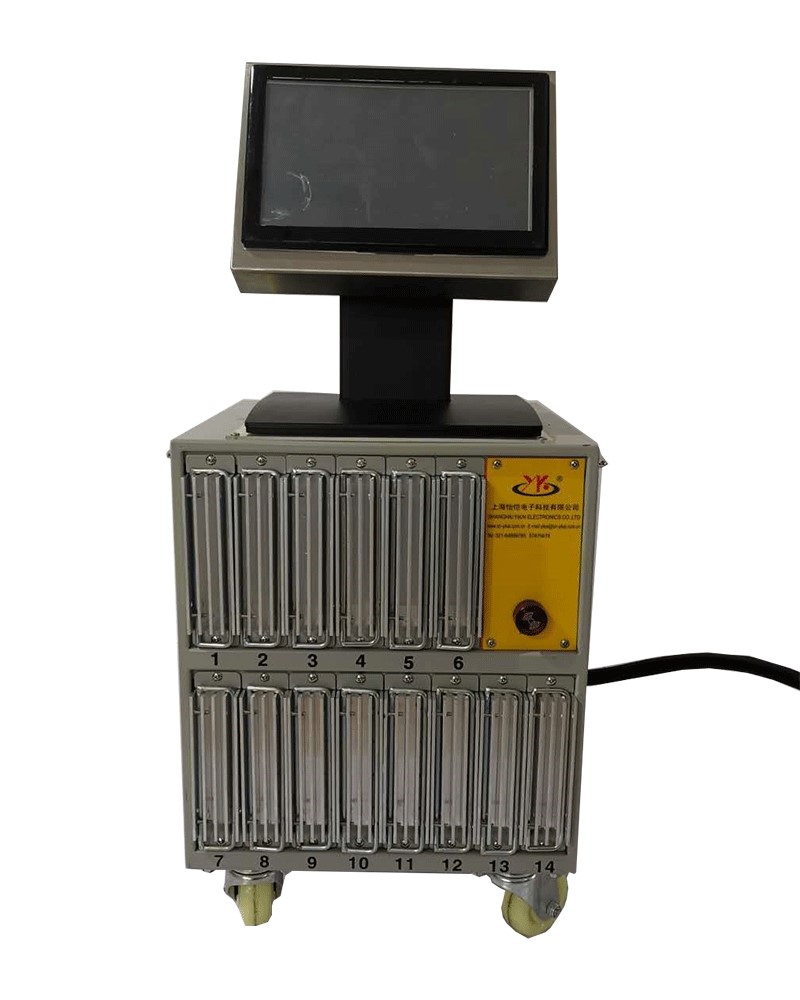

The touch screen and cabinet cannot be placed separately.
