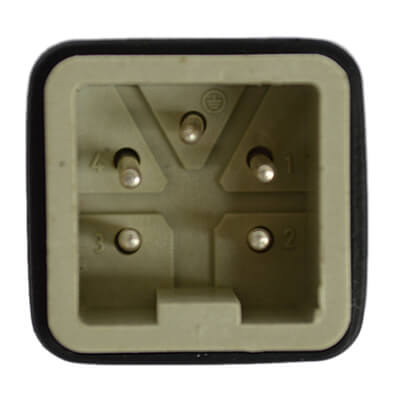

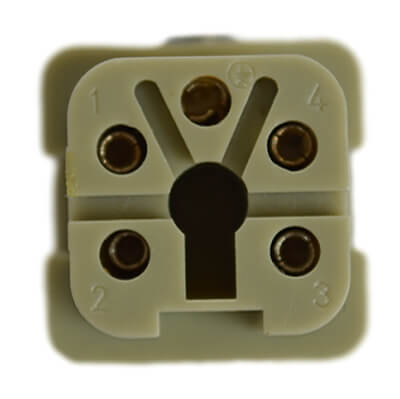

5 pin connector - Rated current: 10A
- Rated voltage: 230V
- Rated impulse voltage: 4KV
- Working temperature range: -40℃- +125℃
- Contact pin material: copper alloy
- Pin coating: silver
- Connection method: screwed connection
- Plastic material: PC
- Insulation resistance: ≥10 MΩ
|  HA-004-F  HA-004-M |  HA-004-TE-PG11  HA-004-BK |

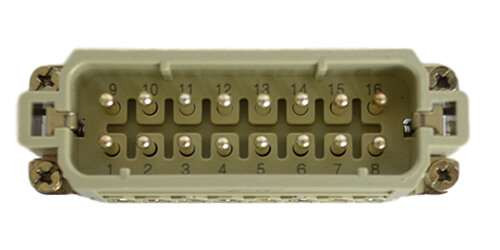

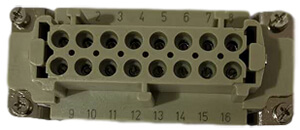

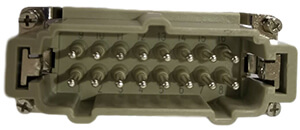

16 pin connector - Rated current: 10A
- Rated voltage: 250V
- Rated impulse voltage: 4KV
- Working temperature range: -40℃- +125℃
- Contact pin material: copper alloy
- Pin coating: silver
- Connection method: screwed connection
- Plastic material: PC
- Insulation resistance: ≥10 MΩ

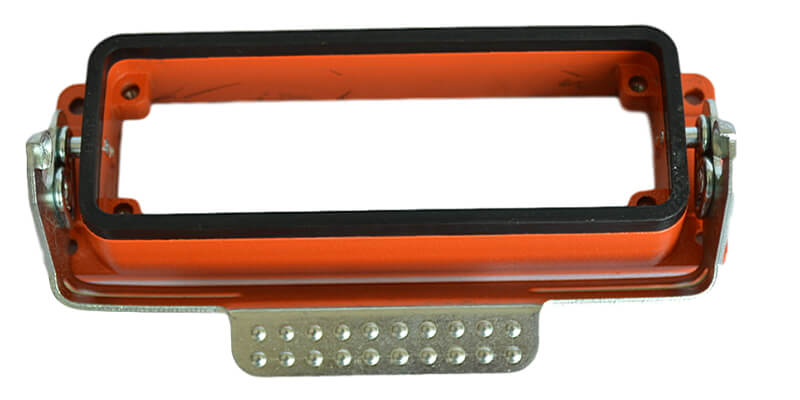

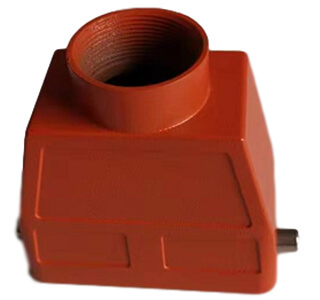

|  HA-16-F  HA-16-M |  HA-16TE-PG16  HA-16-BK1 |
10 pin connector - Rated current: 16A
- Rated voltage: 500V
- Rated impulse voltage: 4KV
- Working temperature range: -40℃- +125℃
- Contact pin material: copper alloy
- Pin coating: silver
- Connection method: screwed connection
- Plastic material: PC
- Insulation resistance: ≥10 MΩ

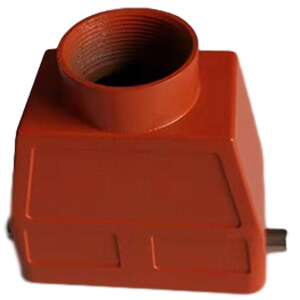

|  HE-10-F  YK-10-M |  HE-10-TE4-PG29  HE-10-BK2  HE-10-TE2-PG29  HE-10-BK1 |

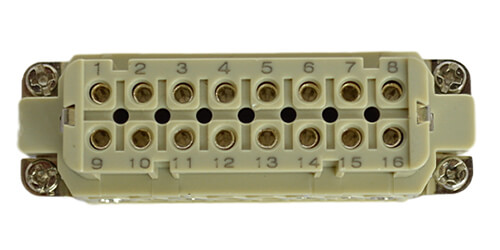

16 pin connector - Rated current: 16A
- Rated voltage: 500V
- Rated impulse voltage: 4KV
- Working temperature range: -40℃- +125℃
- Contact pin material: copper alloy
- Pin coating: silver
- Connection method: screwed connection
- Plastic material: PC
- Insulation resistance: ≥10 MΩ

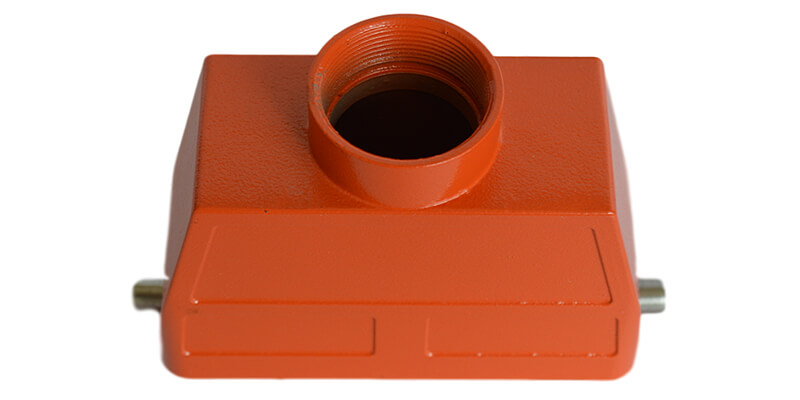

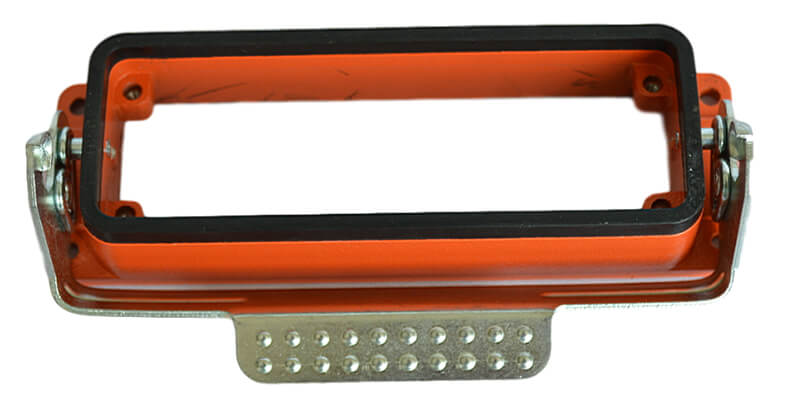

|  HE-16-F  HE-16-M |  HE-16-TE4-PG29  HE-16-BK2  HE-16-TE2-PG29  HE-16-BK1 |
24 pin connector - Rated current: 16A
- Rated voltage: 500V
- Rated impulse voltage: 4KV
- Working temperature range: -40℃- +125℃
- Contact pin material: copper alloy
- Pin coating: silver
- Connection method: screwed connection
- Plastic material: PC
- Insulation resistance: ≥10 Ω
|  HE-24-F  HE-24-M-16A |  HE-24-TE4-PG29  HE-24-BK2  HE-24-TE2-PG29  HE-24-BK1 |
