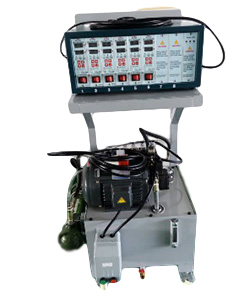

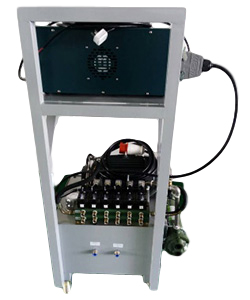

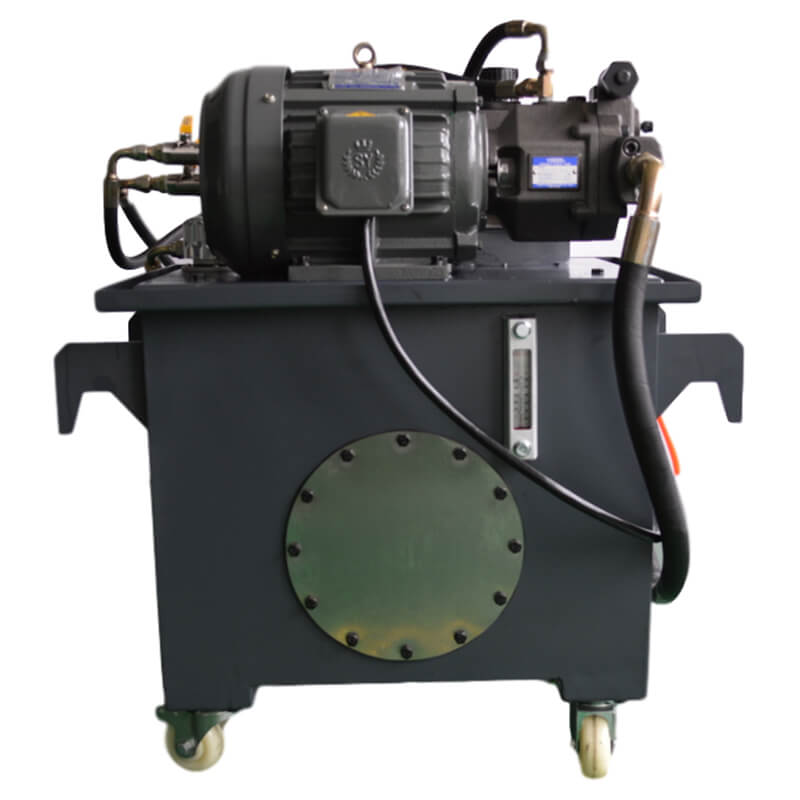

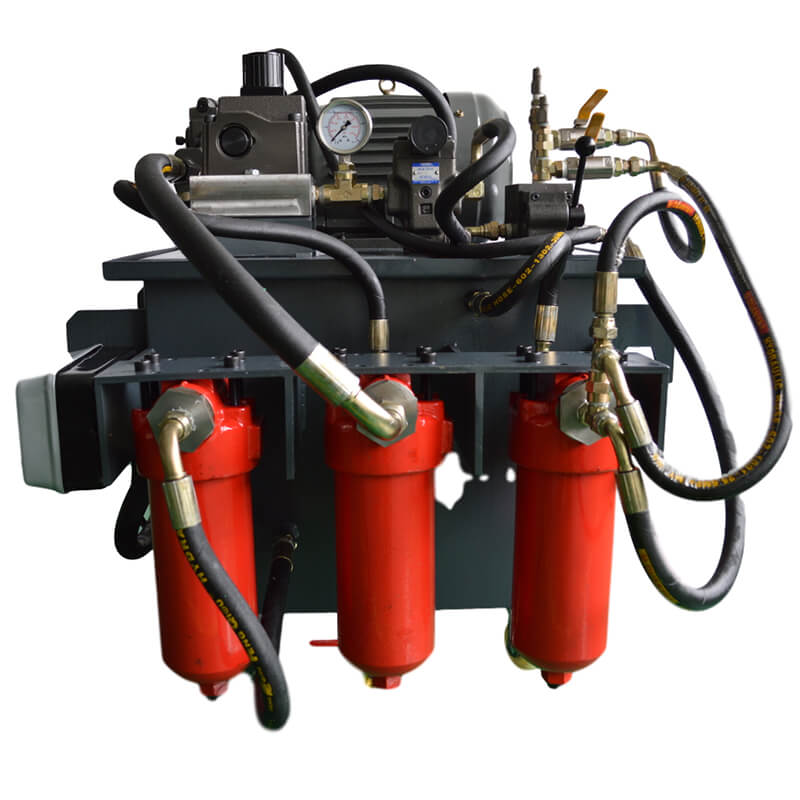

Hydraulic Power Units

Hydraulic power units (HPUs) pressurize oil to power hydraulic cylinders and equipment. The oil pressure can be adjusted according to user requirements.

Application: core pull cylinder of injection molding machine, hot runner cylinder and other hydraulic transmission devices in molding machinery.

Features
  • Compact design: a 4-caster mounted base improves the loading capacity and movability.
  • Imported oil pumps and solenoid directional valves feature a high pressure, large flow, great stability, and long service life.
  • Water-cooling or air-cooling methods are optional according to the customer's requirements.
  • A hand-directional control valve is utilized. When the oil inlet tube and the oil return pipe are incorrectly connected, there is no need to completely dismantle the oil tubes: simply adjust the hand directional control valve.
Models without solenoid directional valves
Model Oil tank capacity Max. flow Max. pressure Working pressure Applicable oil Cooling method Motor power Dimensions (mm) Weight (KG) Remark
YKS-20L-0 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 70 no solenoid directional valve
YKS-30L-0 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 80 no solenoid directional valve
YKS-40L-0 80L 40L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 3.7KW L700W600H700 95 no solenoid directional valve
YKF-20L-0 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Air cooling 1.5KW L700W600H700 70 no solenoid directional valve
YKF-30L-0 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Air cooling 2.2KW L700W600H700 80 no solenoid directional valve
YKF-40L-0 80L 40L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Air cooling 3.7KW L700W600H700 95 no solenoid directional valve

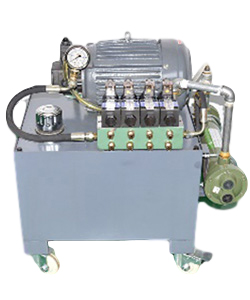

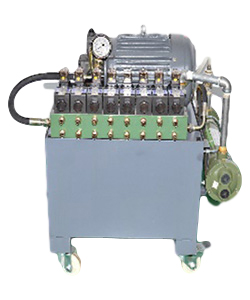

Models with solenoid directional valves
Model Oil tank capacity Max. flow Max. pressure Working pressure Applicable oil Cooling method Motor power Dimensions (mm) Weight (KG) Remark
YKS-20L-1 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 75 1*solenoid directional valve
YKS-20L-2 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 79 2* solenoid directional valve
YKS-20L-3 80L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 104 3* solenoid directional valve
YKS-20L-4 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 108 4* solenoid directional valve
YKS-20L-5 60L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 112 5* solenoid directional valve
YKS-20L-6 80L 20L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 1.5KW L700W600H700 116 6*solenoid directional valve
YKS-30L-7 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 120 7*solenoid directional valve
YKS-30L-8 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 124 8*solenoid directional valve
YKS-30L-9 80L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 128 9*solenoid directional valve
YKS-30L-10 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 132 10*solenoid directional valve
YKS-30L-11 60L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 136 11*solenoid directional valve
YKS-30L-12 80L 30L/s 14Mpa 7Mpa 46# anti wear hydraulic oil Water cooling 2.2KW L700W600H700 140 12*solenoid directional valve

The table above shows standard information for our regular hydraulic power units. Customized options are available to meet unique production requirements.
