YKT-Q-4(8) & YTK-Y-4(8) Hot Runner Sequential Controller

Functions

Supply voltage: 110VAC—240VAC; Frequency range: 50HZ—60HZ
Control mode: manual or automatic mode (selectable)
Time control stage: T1(injection valve gate opening), T2 (injection valve gate delayed opening)
Time setting range: 0-999.9S
Input signal: 220VAC, 110VAC, 24VDC (the output voltage of the injection molding machine) or digital signal (selectable).
Output control voltage: 220VAC, 110VAC or 24VDC (selectable)
Output control valve: YTT-4(8) pneumatic valve or YKT-Y-4(8) hydraulic valve optional upon request

Technical specifications

Item
Supply voltage	185V-250VAC
Frequency range	50HZ-60HZ
Operating temperature	-20 ℃ -60 ℃
Storage temperature	-30 ℃ -70 ℃
Fuse	5A, 5mm × 20mm, 1 ‰ sec
Input signal	24VDC or digital signal
Output voltage	12VDC, 24VDC, 110VAC, 220VAC
Output control valve	Pneumatic or hydraulic valve
Time control stage	T1: valve gate opening; T2: valve gate delayed opening.
Time control accuracy	0.01s

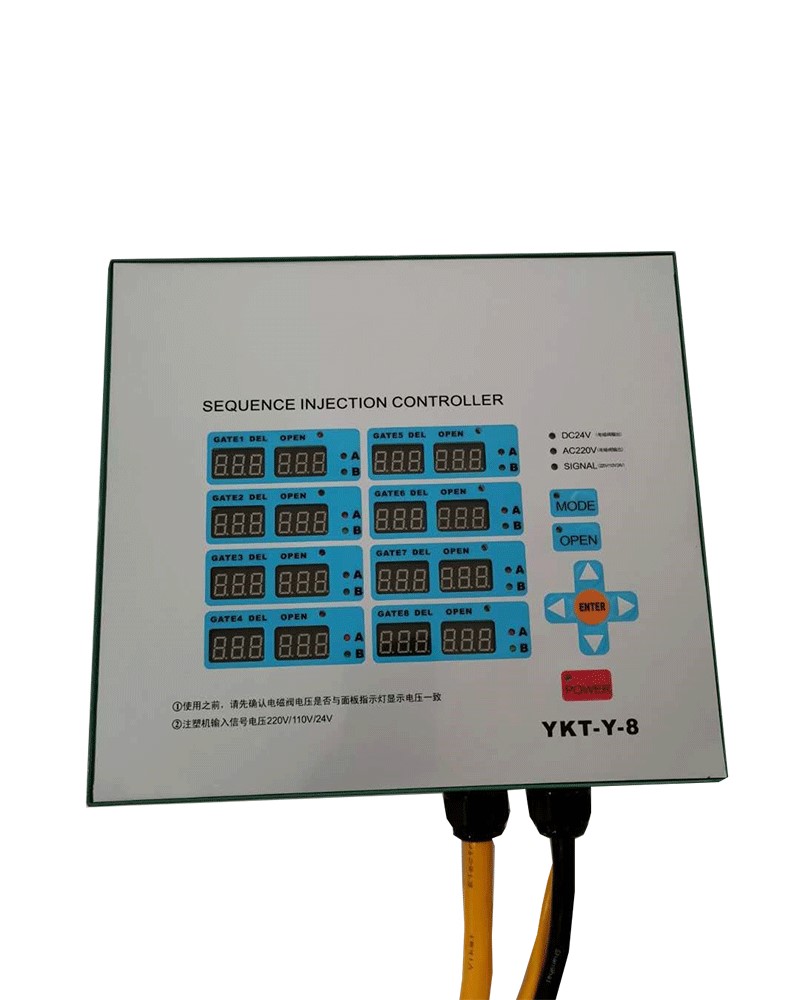

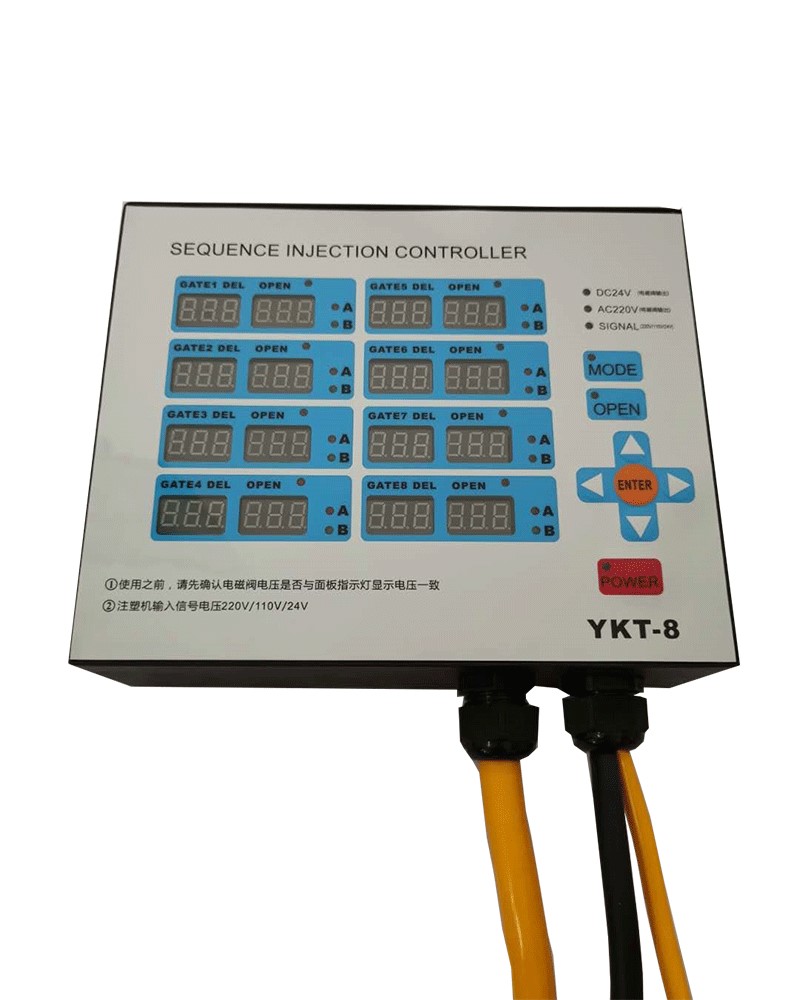

Product gallery
