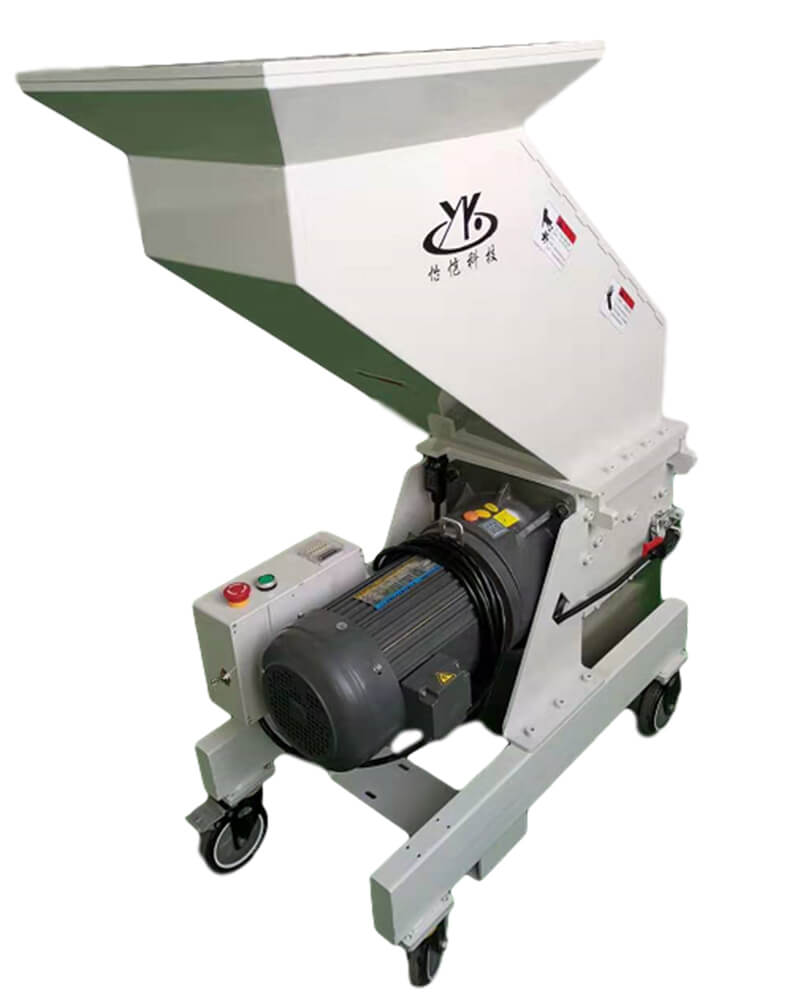

Medium Speed Granulator
Features
- Wide application range: The medium speed granulator is designed to granulate degraded PET/PVC/PE/EPS/PU/PP/ABS materials or rejected parts with a thickness smaller than 3mm.
- Time and cost saving: rejected parts are recycled within 20 seconds with no need to wait for centralized crushing. This reduces labor, management, and storage costs.
- Easy to detach, clean and maintain: The granulator features an easy material changeover and easy cleaning, making it easy to add to an injection molding machine.
- Environmentally friendly and energy saving: the granulator provides consistent granule sizes (3-8mm) and creates a dust-free and low-noise (80-95db) working environment. A time relay is equipped to reduce power consumption.
- Superior blades: High strength steel SKD-11 blades feature an excellent fineness, excellent toughness and outstanding resistance to high temperatures.
- Motor overload protection and power interlock protection functions are designed to improve the operation safety.
Technical parmaters
| Model | YKZS-2HP | YKZS-3HP | YKZS-5HP | YKZS-15HP |
| Cutting chamber size | 236*270mm | 270*290mm | 375*310mm | 427*277mm |
| Feed port size | 260*290mm | 350*400mm | 440*310mm | 500*450 mm |
| Electrical device | Schneider | Schneider | Schneider | Schneider |
| Blade type | Hook blade |
| No. of rotor blades | 8 | 10 | 13 | 15 |
| Blade material | SKD-l1 | SK0-l1 | SK0-l1 | SK0-l1 |
| Rotor speed (rpm) | 145 | 145 | 145 | 145 |
| Total power | 1.5KW | 2.2KW | 3.7KW | 11.5KW |
| Supply voltage | 380V，50HZ | 380V， 50HZ | 380V，50HZ | 380V， 50HZ |
| Dimensions (L*W*H) | 750*470*1250 mm | 970*460*1240 mm | 1180*560*1460 mm | 965*670*1200 mm |
| Granulation capacity(kg/h) | 20（screen hole size:6mm） | 40 | 60 | 200 |
| Weight | 185KG | 192KG | 265KG | 350KG |
| Dia. of standard screen hole | | 6mm | 6mm | 6mm |
Note: The machine's maximum capacity is subject to the screen size diameter and material composition.
